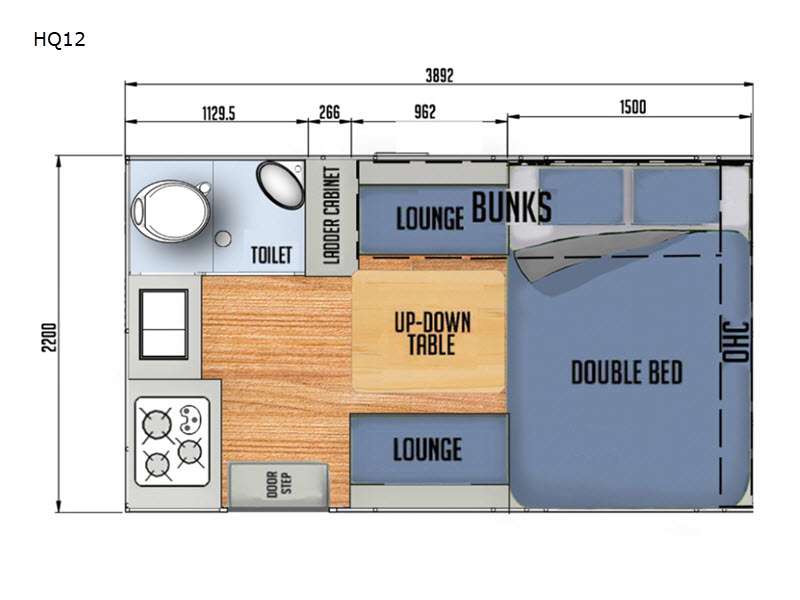

Black Series Camper travel trailer HQ12 highlights:
Bunk Beds
Wet Bath
Three-Burner Range
Adjustable Table
If you are a serious outdoorsman that wants to explore uncharted trails, this Black Series Camper travel trailer is your perfect accomplice! Not only will you have all of the necessary tools to meet your every need, but you will also have a beautiful and relaxing space to return back to each night. The modern wooden vinyl flooring, genuine leather seating, and Malaysian honeycomb timber cabinetry create a decorative space to call home while on the road. You will also thoroughly appreciate having a fiberglass wet bath to call your own, and with enough space to sleep four people, you can invite your friends to partake in the fun.
The Black Series Camper travel trailer and toy hauler were specifically designed to go on diverse and expansive terrain! These trailers have high quality and intense durability so that you can have great luxury while away from home. You will find solar panels to use when you are off-grid, and there is a 12V/120V electrical system and 100AH batteries for power. You will be able to access hot water with the 6-gallon Atwood gas hot water heater, and the independent suspension is exceptionally smooth for traveling.
Call Us Today At 800-878-3325
Features
Features
Standard Features
***PLEASE NOTE: Features and Options separated by model below
INTERNAL TOILET AND SHOWER DUO: Full fiberglass shower enclosed with ventilation, Thetford/Dometic toilet and hand basin. LOUNGE: Dinette style leather seats
TABLE: Adjustable table / lounge bed
SLEEPING CONFIGURATION: 1x Double Bed innerspring bed + 1x Lounge bed + additional removable bunk bed. (suitable for a child)
FLOORING: Modern Wooden vinyl throughout
CABINETRY: Modern 5-star timber finish veneer with:
Malaysian honeycomb timber for ultra-light weight finished off with a durable gloss timber veneer.
Soft close drawers
RANGEHOOD: slim twin fan and twin light range hood
GENUINE LEATHER: Quality black leather hide with a modern 5-star finish diamond stitching throughout the sofa, storage pockets and bed rest areas.
FLY-SCREEN DOOR: Tri Lock Security Door with a separate fly screen door inbuilt.
Appliances
FRIDGE: Dometic fridge/freezer
SINK: Stainless Steel Large bowl sink
AIR CONDITIONING: Dometic brand, light weight, slim, efficient, multi cycle and economic
STOVE: Domestic 3 burner stove
ENTERTAINMENT SYSTEM: Kenwood CD/FM/iPod/Bluetooth/USB
SPEAKER CONFIGURATION: Two Pioneer internal mounted speakers
TV: 24’’ TV with DVD function
SMOKE ALARMS: Smoke Alarm & Gas Detector
ANTENNA TYPE: Jack Digital HDTV over the Air Antenna with Built-in SureLock
Fire extinguisher
Plumbing
INTERNAL SHOWER: Full fiberglass enclosed bathroom with ventilation
EXTERNAL SHOWER: hot/cool water shower
TOILET: Thetford/Dometic Toilet
DRINKING WATER: Pump to 3 stage filter tap
WATER TANKS:
General Water: 1x 50 gal polyurethane water tank with 0.12” bash cover for ultimate protection.
Drinking Water: 1x 16 gal lightweight, durable, polyurethane water tank with alloy bash cover
Greywater: 66 gal polyurethane water tank with aluminum 0.12” bash cover
GAS CYLINDER SIZES: 2x 20 lbs. Gas cylinder Holders
JERRY-CAN HOLDERS: 2x 5 gal Jerry-can holders
HOT WATER: 6 gal Atwood Gas Hot Water system
Wash Tap on drawbar
Chassis
DRAWBAR / CHASSIS: Hot dipped Galvanized drawbar and chassis made from RHS 4” x 2” x 0.15”, with supporting 0.24” plates for extra strength and durability.
INDEPENDENT SUSPENSION: engineered and load tested at 20 ton per suspension arm with dual shock absorbers per control arm and coil springs
WHEELS: 2x 16” Steel Sunraysia wheels with a satin black powder coated finish, rated at 3,417 lbs. each.
TYRES: 2x 265 x 75 x R16 Goodride Mud Terrain tires
BRAKES: 2x 12” electric with mechanical handbrake
HITCH: Hitchmaster DO35 V2-1 with car attachment included
JOCKEY WHEEL: ARK XO Swing Away 10” Jockey Wheel Included
Two rear rated recovery shackles – rated to 4.75T
Electrical
ELECTRICAL SYSTEM: 12V/ 120V electrical system with 2000 watt Black Series pure sine wave
Inverter with a peak of 4000 watt and Charger with a custom Black Series control panel.
BATTERIES: 2x AGM 100Ah Gel batteries
SOLAR PANELS: 2x Roof mounted 150w Solar panels
INTERNAL LIGHTING:
LED down lights
Reading lights in bedroom and lounge room
EXTERNAL LIGHTING: Wide-angle Side & Rear mounted LED lights with additional front and rear bar lights
Anderson plug
ALKO breakaway system car attachment provided
Internal/External 12V/USB plugs
POWER POINTS: Internal double pole and external weatherproof power points
Exterior
DESIGN: Easy 2 stage pop-up with canvas enclosure.
WINDOWS: x4 Eurovision windows with fly screens and privacy shades
CUSTOM DESIGN: a custom aerodynamic modern front end of caravan, with Jerry and Gas compartments ventilated and stored separately with additional storage area / stone deflector
INSULATION: Full roof and walls insulation
AWNING: Wind out compact Dometic awning
OUTDOOR STEP: Drop down Thule Sweden
4x Stabilizer legs
------------------------------------------
MODEL HQ15
Interior
ENSUITE – A separate private toilet and shower with glass vanity with additional storage shelves.
SPLASHBACK: Grey acrylic full height splash back
LOUNGE: Dinette style leather seats
TABLE: Adjustable table / lounge bed
SLEEPING CONFIGURATION: 1x Queen size innerspring mattress + 1x Lounge bed. (suitable for a child)
FLOORING: Modern Wooden vinyl throughout.
CABINETRY: Modern 5-star timber finish veneer with ample storage space.
Malaysian honeycomb timber for ultra-light weight finished off with a durable gloss timber veneer.
Sliding door in ensuite area
Large slimline slide out pantry
Stainless finish towel racks
Soft close drawers
Gas strut assist cupboards
RANGEHOOD: Slim twin fan and twin light range hood.
GENUINE LEATHER: Quality black leather hide with a modern 5-star finish diamond stitching throughout the sofa, storage pockets and bed rest areas.
FLY-SCREEN DOOR: Tri Lock Security Door with a separate fly screen door inbuilt.
Appliances
FRIDGE: Dometic fridge/freezer
SINK: Stainless Steel Large bowl sink.
AIR CONDITIONING: Dometic brand, light weight, slim, efficient, multi cycle and economic
STOVE: Dometic 3 burner stove
MICROWAVE: 6 gal electrical microwave with 4 operating features: simple cooking, microwave cooking, auto defrost function and grill/combination cooking.
ENTERTAINMENT SYSTEM: Clarion CD/FM/iPod/Bluetooth/USB
SPEAKER CONFIGURATION:
Two Pioneer internal roof mounted speakers
Two external marine grade outdoor speakers
TV: 24’’ TV with DVD function
SMOKE ALARMS: Smoke Alarm & Gas Detector
ANTENNA TYPE: Jack Digital HDTV over the Air Antenna with Built-in SureLock
Fire extinguisher
Plumbing
INTERNAL SHOWER: Full fiberglass enclosed bathroom with ventilation and bifold door.
EXTERNAL SHOWER: hot/cool water shower
TOILET: Thetford/Dometic Toilet
DRINKING WATER: Pump to 3 stage filter tap.
WATER TANKS:
General Water: 1x 50 gal polyurethane water tank with 0.12” bash cover for ultimate protection.
Drinking Water: 1x 16 gal lightweight, durable, polyurethane water tank with alloy bash cover.
Greywater: 26 gal Polyurethane water tank with aluminum 0.12” bash cover.
Blackwater: 26 gal Polyurethane water tank with aluminum 0.12” bash cover.
GAS CYLINDER SIZES: 2x 20 lbs. Gas cylinder Holders
JERRY-CAN HOLDERS: 2x 5 gal Jerry-can holders
HOT WATER: 6 gal Atwood Gas Hot Water system
WASH TAP: Located on drawbar.
Chassis
DRAWBAR / CHASSIS: Hot dipped Galvanized chassis with RHS 6” x 2” x 0.15”, made in one continuous piece to rear ensure the draw bar is unbreakable with numerous 0.24” supporting plates for extra strength and durability.
INDEPENDENT SUSPENSION: engineered and load tested at 20 ton per each suspension arm with dual shock absorbers per control arm and coil springs.
WHEELS: 2x 16” custom Black Series steel Sunraysia wheels with a satin black powder coated rated at 1,550kg each.
TYRES: 2x 265 x 75 x R16 Goodride Mud Terrain tires.
BRAKES: 2x 12” electric with mechanical handbrake.
JOCKEY WHEEL: ARK XO Swing Away 10” Jockey Wheel Included.
Two rear rated recovery shackles – rated to 4.75T.
Electrical
ELECTRICAL SYSTEM: 12V/ 120V electrical system with 2000 watt Black Series Inverter with a peak of 4000 watt and Charger with a custom Black Series control panel
BATTERIES: 2x AGM 100Ah Gel batteries
SOLAR PANELS: 2x Roof mounted 150w Solar panels
INTERNAL LIGHTING:
LED down lights
Touch lights in kitchen and bathroom
Reading lights in bedroom and living room
LED strip mood lights in living room/ kitchen/ bathroom
EXTERNAL LIGHTING: Wide-angle Side & Rear mounted LED lights with additional front and rear bar lights
Anderson plug
ALKO breakaway system car attachment provided
Internal/External 12V/USB plugs
POWER POINTS: x7 Internal double pole power points and x1 external weatherproof power points
Exterior
WINDOWS: x5 Eurovision windows with fly screens and privacy shades.
ROOF HATCH: Dometic Roof Hatch with shade.
CUSTOM DESIGN: a custom aerodynamic modern front end of caravan, with Gas compartments ventilated and stored separately with additional storage area / stone deflector with Jerry Cans and fire wood holder at the rear.
INSULATION: Full roof and walls insulation.
AWNING: Wind out compact awning.
OUTDOOR STEP: Drop down Thule Sweden.
Outdoor preparation bench.
4x Stabilizer legs.
-----------------------------------------
MODEL HQ17
Interior
DOUBLE BUNK: A unique first-class feature, curtains for privacy, dropdown TVs/DVDs, personal fans, power points/USB sockets and independent mood lightning through both bunks.
PREPARATION AREA: Pull up side cover for extra preparation area
CABINETRY: Modern 5-star timber finish veneer with ample storage space
Malaysian honeycomb timber for ultra-light weight finished off with a durable gloss timber veneer Soft close drawers
Gas strut assist cupboards
RANGEHOOD: Slim twin fan and twin light range hood
GENUINE LEATHER: Quality black leather hide with a modern 5-star finish diamond stitching throughout the sofa, storage pockets and bed rest areas
DOOR: Tri Lock Security Door with fly screen door inbuilt separately
Appliances
FRIDGE: Thetford/Dometic fridge/freezer (check with retail on availability)
SINK/COOKER: Dometic 2 in 1 cooker and sink with a glass lid allowing for preparation area
AIR CONDITIONING: Dometic brand (model: CALR241), light weight, slim, efficient, multi cycle and economic
MICROWAVE: 6gal Microwave with 4 operating features: simple cooking, microwave cooking, auto defrost function and grill/combination cooking
ENTERTAINMENT SYSTEM: Clarion CD/FM/iPod/Bluetooth/USB.
SPEAKER CONFIGURATION:
Two Pioneer internal roof mounted speakers
Two external marine grade outdoor speaker
SMOKE ALARMS: Smoke Alarm & Gas Detector
ANTENNA TYPE: Jack Digital HDTV over the Air Antenna with Built-in SureLock
FIRE EXTINGUISHER
Plumbing
INTERNAL TOILET AND SHOWER DUO: Full fiberglass shower enclosed with ventilation, Dometic toilet and hand basin with stainless finish towel racks accessible via bifold door.
EXTERNAL SHOWER: Hot/cool water shower
DRINKING WATER: Pump to 3 stage filter tap.
WATER TANKS:
General Water: 1x 50 gal polyurethane water tank with 0.08” bash cover for ultimate protection.
Drinking Water: 1x 16 gal lightweight, durable, polyurethane water tank with alloy bash cover.
Greywater: 26 gal Polyurethane water tank with aluminum 0.12” bash cover.
Blackwater: 26 gal Polyurethane water tank with aluminum 0.12” bash cover.
GAS CYLINDER SIZES: 2x 20 lbs. Gas cylinder Holders
JERRY-CAN HOLDERS: 2x 5 gal Jerry-can holders
HOT WATER: 6 gal Atwood Gas Hot Water system
WASH TAP: Located on drawbar
Chassis
DRAWBAR / CHASSIS: Hot dipped Galvanized chassis with RHS 6” x 2” x 0.15”, made in one continuous piece to rear ensure the draw bar is unbreakable with numerous 0.24” supporting plates for extra strength and durability.
SECONDARY CHASSIS: Additional chassis 4” x 2” x 0.12” for off-road clearance and unbreakable structure.
INDEPENDENT SUSPENSION: engineered and load tested at 20 ton per each suspension arm with dual shock absorbers per control arm and coil springs.
WHEELS: x4 16IN custom Black Series Alloy wheels with a satin black powder coated rated at 2,160lbs each.
TYRES: 4 x 265 x 75 x R16 Goodride Mud Terrain tires.
BRAKES: 4x 12 inch electric with mechanical handbrake park assist.
HITCH: Hitchmaster DO35 V2-1 with car attachment included.
JOCKEY WHEEL: ARK XO Swing Away 10” Jockey Wheel Included
Two rear rated recovery shackles – rated to 4.75T.
Electrical
FAN: main queen bed area with a fan and double bunks with independent fans for inner circulation.
ELECTRICAL SYSTEM: 12V/ 120V electrical system with 2000 watt Black Series pure sine wave Inverter with a peak of 4000 watt and Charger with a custom Black Series control panel.
BATTERIES: 2x AGM 100Ah GEL batteries
SOLAR PANELS: 2x Roof mounted 150w Solar panels
INTERNAL LIGHTING:
LED down lights
Reading lighting in bedroom, bunk and living room
LED mood lights in living room and kitchen
EXTERNAL LIGHTING: Wide-angle Side & Rear mounted LED lights with additional front and rear bar lights
50 AMP Anderson plug
ALKO breakaway system car attachment provided.
Internal/External 12V/USB plugs
POWER POINTS: x7 Internal double pole power points and x1 external weatherproof power points.
Exterior
WINDOWS: x5 Eurovision windows with fly screens and privacy shades.
ROOF HATCH: Dometic Roof Hatch with shade.
CUSTOM DESIGN: a custom aerodynamic modern front end of caravan, with Jerry and Gas compartments ventilated and stored separately with additional storage area / stone deflector.
INSULATION: Full roof and walls insulation.
AWNING: Wind out compact awning.
OUTDOOR STEP: Drop down Thule Sweden..
Outdoor preparation bench
4x Stabilizer legs
-----------------------------------------
MODEL HQ19
Interior
ENSUITE – A separate private toilet and shower with ceramic vanity with a hidden laundry.
PREPARATION AREA: Drop down stove cover/Preparation area.
CABINETRY: Modern 5-star timber finish veneer with ample storage space
Malaysian honeycomb timber for ultra-light weight finished off with a durable gloss timber veneer
Sliding door in ensuite area with ventilation.
Large slimline slide out pantry.
Stainless finish towel racks
Soft close drawers
Gas strut assist cupboards
RANGEHOOD: Slim twin fan and twin light range hood.
GENUINE LEATHER: Quality black leather hide with a modern 5-star finish diamond stitching throughout the sofa, storage pockets and bed rest areas.
FLY-SCREEN DOOR: Tri Lock Security Door with a separate fly screen door inbuilt.
Appliances
FRIDGE: Thetford/Dometic fridge/freezer (check with retail on availability)
SINK: Stainless Steel Large bowl sink.
WASHING MACHINE: Automatic top loader washing machine – 7.7lbs
AIR CONDITIONING: Dometic brand, light weight, slim, efficient, multi cycle and economic.
OVEN/STOVE: Thetford/Dometic Multi-functional cooker (check with retail on availability)
MICROWAVE: 6 gal electrical microwave with 4 operating features: simple cooking, microwave cooking, auto defrost function and grill/combination cooking.
ENTERTAINMENT SYSTEM: Clarion CD/FM/iPod/Bluetooth/USB
SPEAKER CONFIGURATION:
Two Pioneer internal roof mounted speakers.
Two external marine grade outdoor speakers.
TV: 24’’ TV with DVD function.
SMOKE ALARMS: Smoke Alarm & Gas Detector
ANTENNA TYPE: Jack Digital HDTV over the Air Antenna with Built-in SureLock
Fire extinguisher.
Plumbing
INTERNAL SHOWER: Full fiberglass enclosed bathroom with ventilation and bifold door.
EXTERNAL SHOWER: hot/cool water shower
TOILET: Thetford/Dometic Toilet
DRINKING WATER: Pump to 3 stage filter tap.
WATER TANKS:
General Water: 1x 50 gal polyurethane water tank with 2mm bash cover for ultimate protection.
Drinking Water: 1x 16 gal lightweight, durable, polyurethane water tank with alloy bash cover.
Greywater: 26 gal Polyurethane water tank with aluminum 3mm bash cover.
Black: 26 gal Polyurethane water tank with aluminum 3mm bash cover.
GAS CYLINDER SIZES: 2x 20 lbs. Gas cylinder Holders
JERRY-CAN HOLDERS: 2x 5 gal Jerry-can holders
HOT WATER: 6 gal Atwood Gas Hot Water system
WASH TAP: located on drawbar
Chassis
DRAWBAR / CHASSIS: Hot dipped Galvanized chassis with RHS 6” x 2” x 0.15”, made in one continuous piece to rear ensure the draw bar is unbreakable with numerous 6mm supporting plates for extra strength and durability.
SECONDARY CHASSIS: additional chassis 4” x 2” x 0.12” for off-road clearance and unbreakable structure.
INDEPENDENT SUSPENSION: Engineered and load tested at 20 ton per suspension arm with dual shock absorbers per control arm and coil springs.
WHEELS: x4 16IN custom Black Series Alloy wheels with a satin black powder coated rated at 1,000kg each.
TYRES: 4 x 265 x 75 x R16 Goodride Mud Terrain tires.
BRAKES: 4x 12 inch electric with mechanical handbrake.
HITCH: Hitchmaster DO35 V2-1 with car attachment included.
JOCKEY WHEEL: ARK XO Swing Away 10” Jockey Wheel Included .
Two rear rated recovery shackles – rated to 4.75T.
Electrical
All connected by a certified electrician to comply with Australian Standards (Compliance Certificate included).
ELECTRICAL SYSTEM: 12V/ 120V electrical system with 2000 watt Black Series pure sine wave
Inverter with a peak of 4000 watt and Charger with a custom Black Series control panel.
BATTERIES: 2x AGM 100Ah GEL batteries.
SOLAR PANELS: 2x Roof mounted 150w Solar panels.
INTERNAL LIGHTING:
LED down lights
Touch lights in kitchen and bathroom
Reading lights in bedroom and living room
LED strip mood lights in living room/ kitchen/ bathroom
EXTERNAL LIGHTING: Wide-angle Side & Rear mounted LED lights with additional front and rear bar lights
50 AMP Anderson plug
ALKO breakaway system car attachment provided
Internal/External 12V/USB plugs
POWER POINTS: x7 Internal double pole power points and x1 external weatherproof power points.
Exterior
WINDOWS: x5 Eurovision windows with fly screens and privacy shades
ROOF HATCH: Dometic Roof Hatch with shade
CUSTOM DESIGN: A custom aerodynamic modern front end of caravan, with Jerry and Gas compartments ventilated and stored separately with additional storage area / stone deflector.
INSULATION: Full roof and walls insulation
AWNING: Wind out compact awning
OUTDOOR STEP: Drop down Thule Sweden
Outdoor preparation bench
4x Stabilizer legs
-----------------------------------------
MODEL CLASSIC12
Interior
INTERNAL TOILET AND SHOWER DUO: Full fiberglass shower enclosed with ventilation, toilet and hand basin.
LOUNGE: Dinette style leather seats
TABLE: Removable / Adjustable table
SLEEPING CONFIGURATION: 1x Double Bed with additional removeable bunk bed (Gas Strut assisted) mattress included.
FLOORING: Modern Wooden vinyl throughout
CABINETRY: Modern 5-star timber finish veneer with:
Malaysian honeycomb timber for ultra-light weight finished off with a durable gloss timber veneer.
FLY-SCREEN DOOR: Security Door with a separate fly screen door inbuilt.
FLY-SCREEN DOOR: Tri Lock Security Door with a separate fly screen door inbuilt.
Appliances
FRIDGE: Dometic fridge/freezer
STOVE: Dometic 3 burner stove on external kitchen
ENTERTAINMENT SYSTEM: Kenwood CD/FM/iPod/Bluetooth/USB
SPEAKER CONFIGURATION: Two internal mounted speakers
SMOKE ALARMS: Smoke Alarm & Gas Detector
Fire extinguisher
Plumbing
INTERNAL SHOWER: Full fiberglass enclosed bathroom with ventilation
EXTERNAL SHOWER: hot/cool water shower
TOILET: Included standard
WATER TANKS:
General Water: General Water: 50 Gal Polyurethane water tank with 2mm bash cover for ultimate protection.
Grey Water: 26 Gal grey Polyurethane water tank
Black Water: 26 Gal black Polyurethane water tank
GAS CYLINDER SIZES: 2x 9kg Gas cylinder Holders
JERRY-CAN HOLDERS: 2x 20L Jerry-can holders
HOT WATER: 23L Atwood Gas Hot Water system
Chassis
DRAWBAR / CHASSIS: Hot dipped Galvanized drawbar and chassis made from RHS 150mm x 50mm x 4mm for extra strength and durability.
Independent Suspension: Independent Suspension Arms With Dual
Shock Absorbers And Coil Springs
Wheels: x3 16inch Steel Wheels With A Satin Black Powder Coated Finish.
Tires: 3x 265 x 75 x R16 Good Ride Mud Terrain Tires
Brakes: 2x 12inch Electric With Mechanical Handbrake
Hitch: Black Series ADR Approved Off-Road Poly-Block Hitch
Jockey Wheel: ARD XO Swing Away 10” Jockey Wheel Included
Two Rear Rated Recovery Shackles – Rated to 10,640lbs
Electrical
Electrical System: 30AMP Shoreline/50 AMP Anderson Plug,12V/ 110V
Electrical System With Black Series Pure Sine Wave Inverter And
Charger With A Custom Black Series CLASSIC-15 Control Panel
Batteries: 1 X AGM 100AH GEL Batteries.
Internal Lighting:
Roof Mounted Lights
Reading Lights In Bedroom
External Lighting: Side Mounted Lights
Anderson Plug
Internal 12V/USB Plugs
Power Points: Internal Double Pole Power Points
Breakaway System Car Attachment Provided.
-----------------------------------------
MODEL HQ21
Interior
Separate private toilet with ceramic vanity.
Separate private shower.
Drop down stove cover/Preparation area.
Grey acrylic full height splash back.
Large U Shape Dinette Style Lounge area with comfortable durable seating.
Adjustable table / lounge bed.
1x Queen size inner spring mattress + 1x Lounge bed.
Modern Wooden vinyl flooring throughout.
Modern 5-star timber finish veneer with ample storage. Ultra-light weight Malaysian honeycomb timber, finished off with a durable gloss timber veneer. Sliding door in separate sleeping area with ventilation.
Large slim line slide out pantry.
Stainless finish towel racks
Soft close drawers
Gas strut assist cupboards
Plumbing
Internal shower in a full fiberglass enclosed bathroom with ventilation and Slim door.
External hot/cool water shower
Thetford/Dometic Toilet
Three stage filter for drinking water.
Water Tanks:
General Water: 1x 50 Gal lightweight, durable polyurethane water tank with aluminum .12" bash cover.
Drinking Water: 1x 16 Gal lightweight, durable, polyurethane water tank with aluminum .12" bash cover.
26 Gal Polyurethane Grey and Black water tank with aluminum .12" bash cover.
GAS CYLINDER SIZES: 2x 20 lb. Gas cylinder Holders
JERRY-CAN HOLDERS: 2x 5 Gal Jerry-can holders
HOT WATER: 6 Gal Hot Water system
Chassis
Hot dipped Galvanized chassis with RHS 6" x 2" x .15", made in one continuous piece to the rear, to ensure the draw bar is unbreakable with numerous .23" supporting plates for extra strength and durability.
Additional chassis 4" x 2" x .12" for off-road clearance and unbreakable structure.
Engineered and load tested independent suspension at 20 ton per suspension arm with dual shock absorbers per control arm and coil springs.
Four 16" custom Black Series Alloy wheels with a satin black powder coating rated at 2,205 lbs. each.
Four 265 x 75 x R16 mud terrain tires.
Four 12" electric drums with mechanical handbrake.
Black Series ADR Approved Off Road Poly-Block Hitch with car attachment included.
ARK 750 XO Swing Away 10” Jockey Wheel Included.
Two rear rated recovery shackles – rated to 10,471 lbs.
Electrical
12V/ 110V electrical system with 2000watt Black Series pure sine wave Invertor with a peak of 2000watt and Charger with a custom Black Series control panel.
AGM 100Ah GEL batteries.
Two Roof mounted 150w Solar panels.
INTERNAL LIGHTING:
LED down lights
Touch lights in kitchen
Reading lights in bedroom and living room
LED strip mood lights in living room / kitchen / bathroom
Wide-angle Side external LED lights with additional front and rear bar lights.
50 AMP Anderson plug
Breakaway system car attachment provided
Internal/External 12V/USB plugs
Six Internal double pole power points and x1 external weather proof power points.
Exterior
Seven Eurovision windows with fly screens and privacy shades
Two Roof Hatch with shade and LED lights
CUSTOM DESIGN: A custom aerodynamic modern front end of caravan, with Jerry and Gas compartments ventilated and stored separately with additional storage area / stone deflector.
Full roof and walls insulation, R16 factor
Wind out compact awning
Drop down outdoor step
Outdoor preparation bench
Four Stabilizer legs
--------------------------------------------
MODEL HQ19T
Exterior
Windows: Eurovision Windows With Fly Screens And Privacy Shades.
Roof Hatch: Roof Hatch With Shade.
Custom Design: A Custom Aerodynamic Modern Front End Of Caravan And Gas
Compartments Ventilated And Stored Separately With Additional Area/
Stone Deflector.
Insulation: Full Roof And Wall R16 Foam Insulation.
Jockey Wheel: 1x Swing up heavy duty 10 inch solid Jockey wheel
Independent suspension with 4 coil springs, and dual shock absorber
5 x 235*75*R15 All - terrain tires (including spare tire)
Coupling: 12000LB - capacity - articulating
Safety Chains: BLACK SERIES with x 2 4,480 lb. D shackle
Brake system: 12 inch electric brake + hand brake
Dry Weight: 6,504 lbs. Tow Ball Weight: 728 lbs.
Speaker Configuration:
Two Pioneer internal roof mounted speakers.
Two external wall mounted outdoor speakers
Lighting : Touch reading lights in bedroom LED atmosphere lights on roof
Sleeping Configuration: Main queen bed
4x single bunk beds folding style (can be changed to sofa)
Bathroom Configuration:
Combination bathroom
Ceramic washbasin
Water tap with sprinkler function
Dometic direct drainage closestool - need flush
Shelf and Mirror
Electrical
12V/ 110V electrical system
2000 watt Black Series pure sine wave Invertor with a peak of 4000 watts
Charger with a custom Black Series control panel.
AGM 100Ah GEL batteries.
Two Roof mounted 150w Solar panels.
Cabin LED down lights
Reading lights
LED strip mood lights
Wide-angle exterior Side LED lights with additional front and rear bar lights
50 AMP Anderson plug/ 30 amp shoreline
ALKO breakaway system car attachment provided
Internal/External 12V/USB plugs
POWER POINTS: x6 Internal double pole power points and x1 external weather
proof power points.
Exterior
Seven Eurovision windows with fly screens and privacy shades
Two Roof Hatch with shade and LED lights
CUSTOM DESIGN: A custom aerodynamic modern front end of caravan, with Jerry and Gas compartments ventilated and stored separately with additional storage area / stone deflector.
Full roof and walls insulation, rated for R16 factor
Wind out compact awning
Drop down outdoor step
Full outdoor kitchen with prep table
Four Stabilizer legs
--------------------------------------------
MODEL SERGEANT
Tent Specifications
Quality close weaved canvas 18oz (1.12lbs) roof & 16 oz. (1 lbs.) walls.
Self-supporting modern design freestanding without guide ropes. (Depending on weather conditions.)
New design upgraded fold out frame enables quicker setup of tent.
Quality PVC floor with 4” high PVC floor to prevent water seepage.
Heavy duty SBS zips throughout.
Heavy Duty 0.12lbs/sq. ft. PVC travel cover with 8 x large tie down points, the cover has both Velcro and zipper for maximum water and dust prevention
Annex walls are removable in 3 parts with Velcro for personal configuration.
Clear PVC skylight for bedroom with internal canvas cover.
Ventilation vent in bedroom.
Both mosquito and midge proof mesh used on all doors and windows.
Large windows throughout tent for increased ventilation.
Access to trailer via 2 trap doors. (Main bedding area)
All stress points are fully reinforced.
All stitching is seam taped.
Access to trailer via Velcro skirting when erected.
Double stitching throughout all stress points reinforced
Poles: Durable galvanized poles with corner reinforcing
Windows: and mosquito proof mesh with zip-able screens
Mattress: Two Quality Mattresses Included
Trailer Specifications
Suspension: adjustable independent suspension with dual shock absorbers per independent arm and coil springs.
Drawbar & Chassis: Electrophoresis / Galvanized RHS chassis 3 x 2 x 0.12 inch and Draw bar RHS 4 x 2 x 0.16 inch with additional 0.2 inch plates to strengthen further for all your touring and off-road needs!
Internal Setup: Table with surrounding couches, with front and rear bedding areas. Our unique Double fold design turns into a third bedroom while you keep the lounge area.
Brakes: 12” Heavy Duty electric brakes assist setup with mechanical handbrake
Construction: Zincanneal full enclosed, fully welded, bonded and sealed for maximum strength and protection
Finish: Enamel baked paint finish
Internal Finish: Modern wood finish with marine carpet
Jockey Wheel: 10” swing-up & lockable
Jerry Can Holders: 2 x 5 Gal jerry can holders
Propane bottle holders: 2 propane bottle holders
Stainless Kitchen: With a large sink, light, electric pump and tap
Water Tank: Twin 24 Gal Polyurethane tanks with Aluminum bash cover, total of 48 Gal.
Lights: LED Fully submersible tail lights, number plate, clearance lights and internal mood lighting
Stabilizer Legs: Four Heavy Duty lockable & adjustable. (Wind down spindle supplied)
Electrical System: Deep Cycle AGM GEL battery 100AH with 12V sockets with USB and equipped with a 50AMP Anderson plug
Undercarriage: Deadener coating used for maximum protection
Huge Tool Box with large drawers for generator, esky or fridge with built-in ventilation fan and sensor LED light
Setup is made easy with two lightweight aluminum lids
Hitch: Black Series Poly Block with car attachment included
Entertainment: Radio/CD/USB media player with two internal speakers
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
Favorite RVs
Save your favorite RVs as you browse. Begin with this one!
What Other Customers Are Saying
Linda and I were impressed with Byerly RV
Linda and I were impressed with Byerly RV from first contact on the website. We saw what we were looking for and made the first call. Jason was friendly and courteous throughout that call answering questions patiently. I also received calls from Michelle and Brett explaining licensing and financial
... More »
Thomas
We were looking for a Keystone Passport Classic 190RD
We were looking for a Keystone Passport Classic 190RD and Byerly RV was the closest dealership we could find. We called them and talked with Jason Hawkins and set up a time to look at one. First we sat down to identify things we were looking for in a travel trailer. We then went an took a tour of the
... More »
C
Jason at Byerly RV was our awesome sales contact,
Jason at Byerly RV was our awesome sales contact, before we started he asked us questions what we were looking for. He researched inventory to find a match and showed us campers that fit our needs. Even though our choice didn't match after seeing inside it was our first choice Winnebago 25ML.
Michelle
... More »
Steve
We are here to help,
call us at 636-938-2000 or
Contact Us
Byerly RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer-provided pictures, specifications and features may be used as needed. Inventory shown may be only a partial listing of the entire inventory. Please contact us at 636-938-2000 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
