Winnebago Revel Motor Home Class B - Diesel

1 of 33

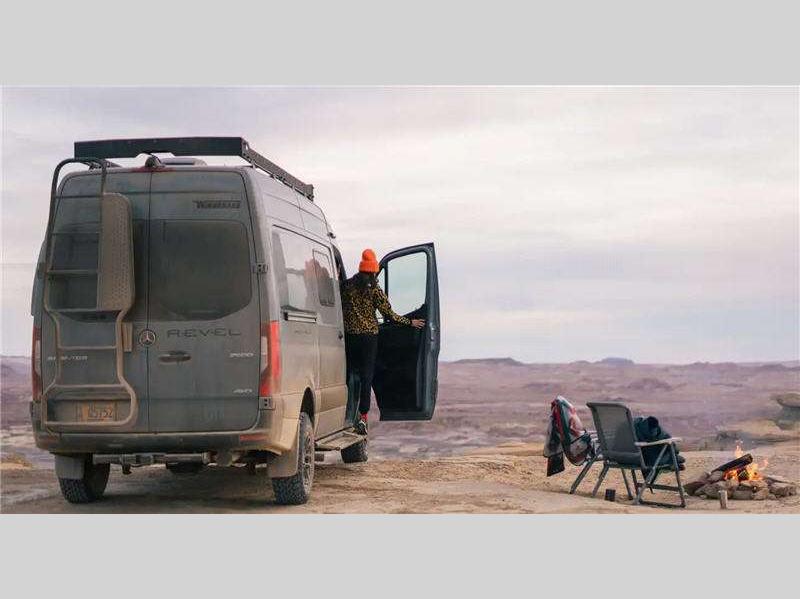

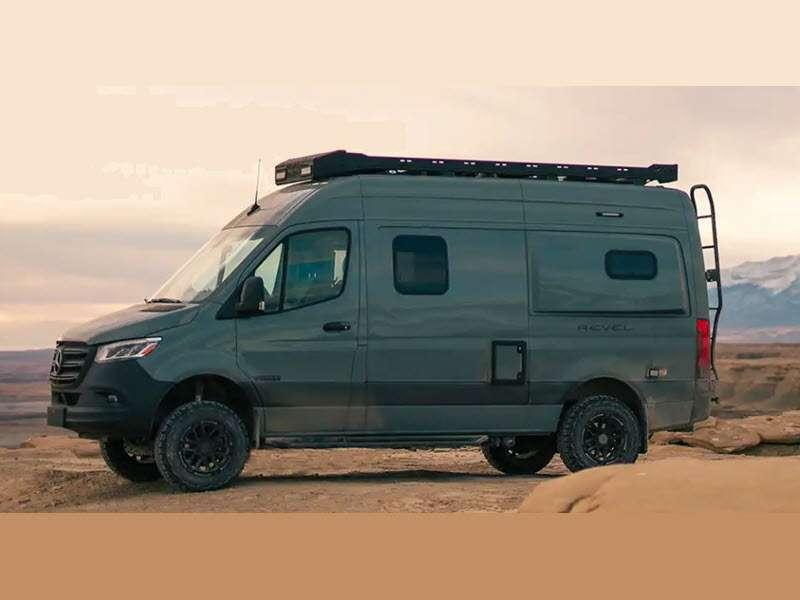

If you are an adventure enthusiast, and if you love to travel to wherever the world takes you, then these Winnebago Revel Class B Diesel motorhomes must be a part of your next excursion. Claiming RV Pro's "Best of Show" title, these motorhomes with a 4x4 Mercedes-Benz Sprinter chassis boast a 4-wheel drive system that allows you to take your camping one step further: off road. With its ability to navigate the tough terrain, these motorhomes become essential to those who enjoy truly living off of the grid.


Not only are these motorhomes the most off-road-capable RV that Winnebago has ever built, but they are also one of the most modern and versatile units when it comes to the interior amenities. Because of its expertly designed floor plan, these motorhomes feature a 140 cubic foot garage space which allows you to bring along all of your outdoor gear, and when the day is over, the power lift transitions down into a bed for you to sleep on. Even the wet bath is multi-functional because of the added three shelves and rod which allow this space to also serve as a closet.


Open up a world of possibilities and unlimited destinations with these Winnebago Revel Class B Diesel motorhomes!

  • Revel 44E

    Revel 44E Floorplan Image

    Take a Virtual Tour

    Winnebago Revel 44E Class B Diesel motorhome highlights: Sleeps Three 140 Cubic ... more about Revel 44E


    Sleeps 3
    Length 19 ft 5 in
    Ext Width 7 ft 1 in
    Ext Height 9 ft 10 in
    Int Height 6 ft 3 in
    Interior Color Gravity

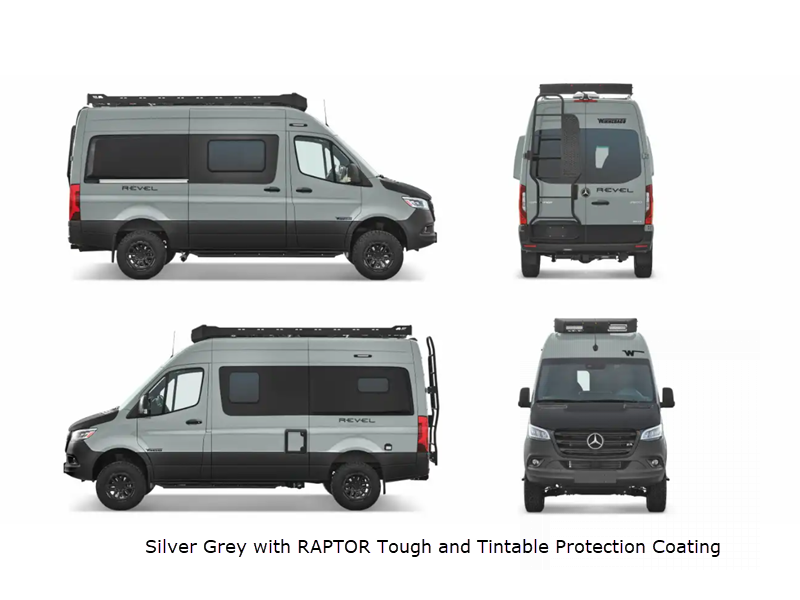

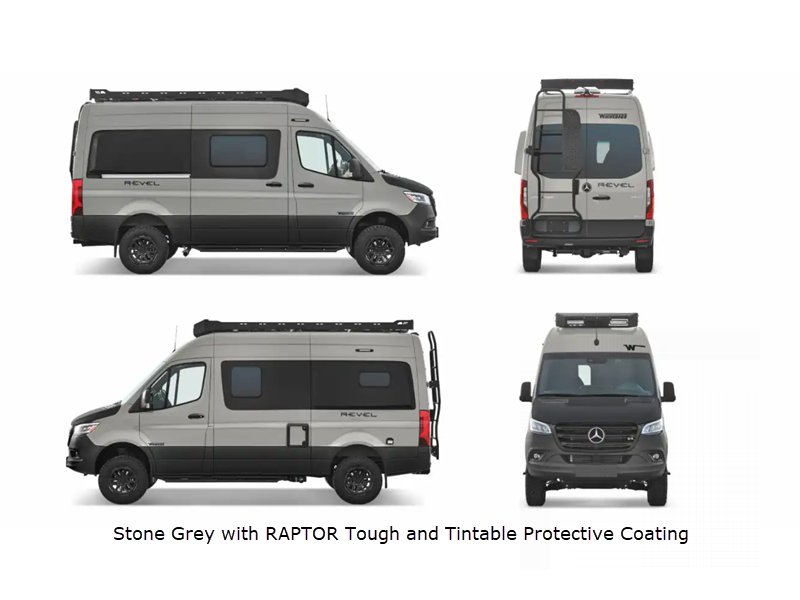

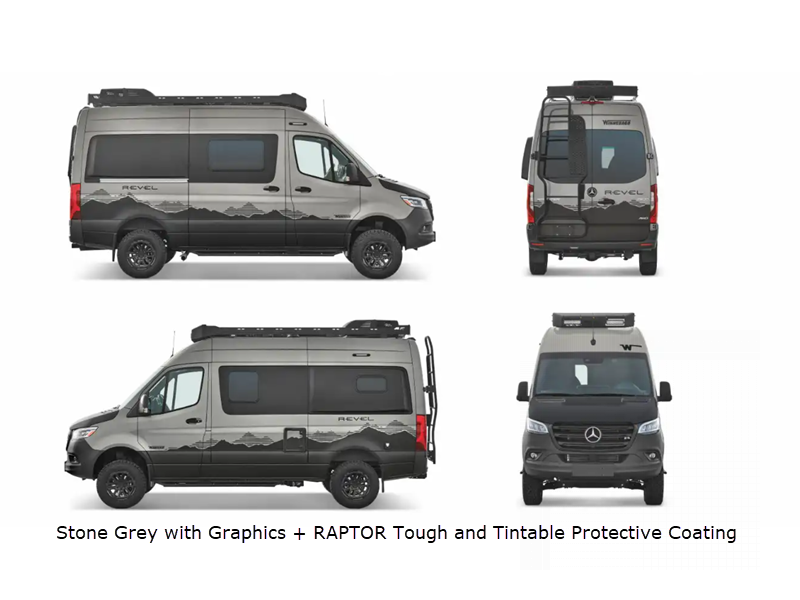

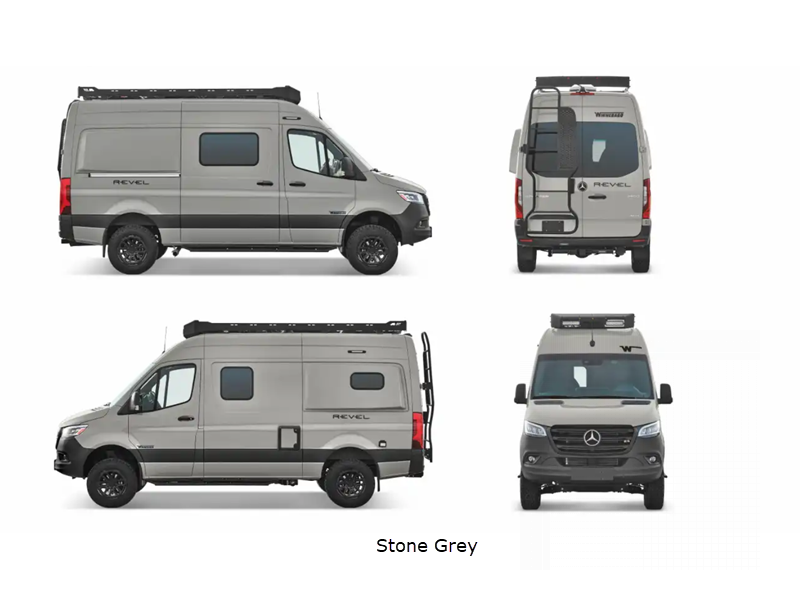

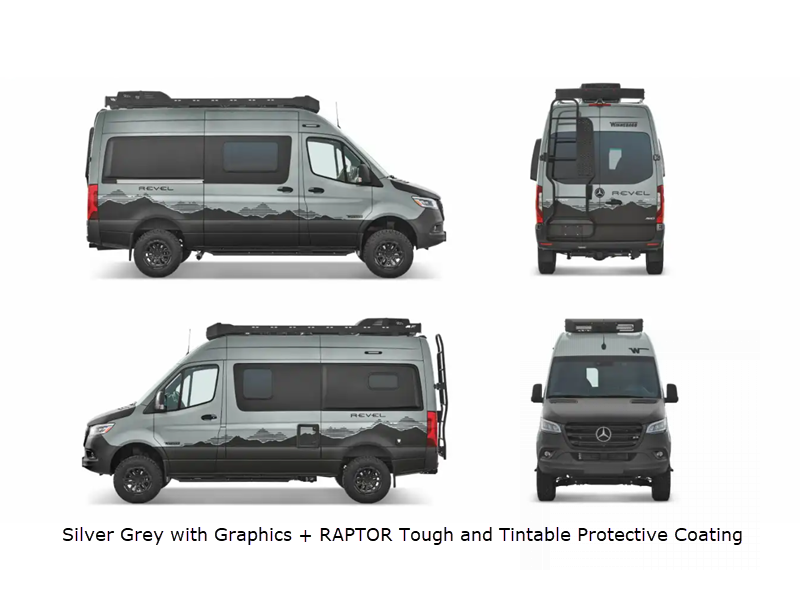

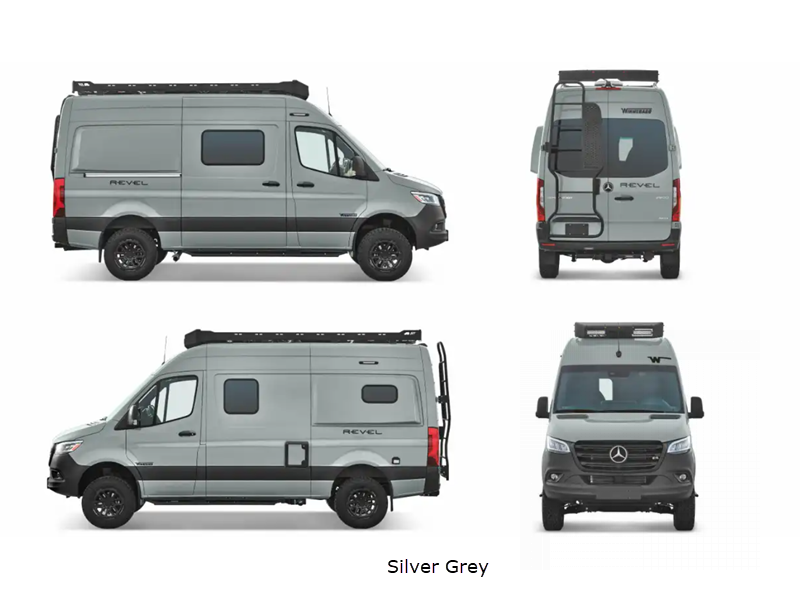

    Exterior Color Pebble Gray, Silver Forest
    Hitch Weight 5000 lbs
    Gross Weight 8550 lbs
    Fresh Water Capacity 21 gals
    Grey Water Capacity 21 gals
    Black Water Capacity 5 gals
    Fuel Type Diesel
    Engine 3.0L 6-Cylinder
    Chassis Mercedes Benz Sprinter
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 144 in
    Number Of Bunks 1
    Torque 325 ft-lb
    Refrigerator Size 2.5 cu ft
    Cooktop Burners 1
    Shower Size 26" x 31"
    Number of Awnings 1
    Axle Weight Front 4101 lbs
    Axle Weight Rear 5360 lbs
    Water Heater Type Continuous
    Awning Info 10' Power
    Gross Combined Weight 13550 lbs
    Shower Type Wet/Bath Shower
    Electrical Service 30 amp

    Similar Floorplans

Revel Features:

Standard Features


Mercedes-Benz Sprinter Chassis

  • 3.0 L 6 Cylinder, 188 HP, Diesel Engine, 5-Speed Automatic Tip Shift Transmission, 220 AMP Alternator
  • On-Demand 4WD with Low Range Electronic Stability and Traction Control
  • 4-Wheel ABS Brakes
  • Trailer Hitch 5,000 LB Drawbar/500 LB Maximum Vertical Tongue Weight
  • 7-Pin Wiring Connector

Cab Conveniences

  • Radio/Rearview Monitor System with 6" LCD Color Touch Screen, Remote, iPod®/MP3 Input, and Color Rear Camera
  • Chassis/Coach Battery Radio Power Switch

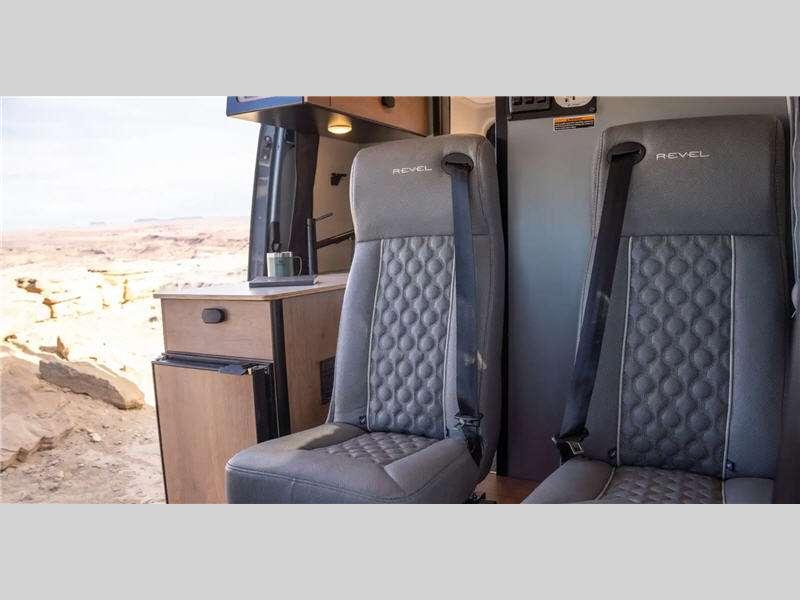

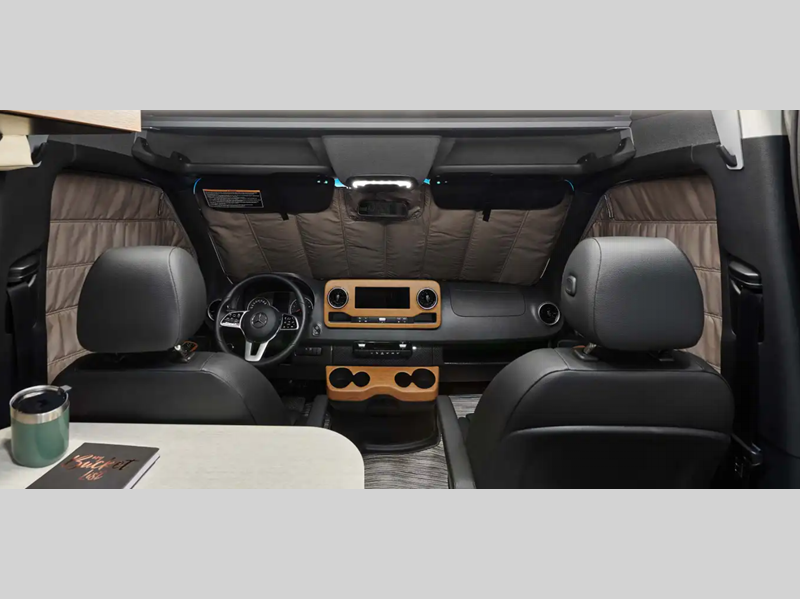

  • Cab Seats with Armrests, Adjustable Lumbar Support, Adjustable Headrest, and Slide/Swivel/Recline Capabilities
  • 3-Point Seat Belts
  • Dual Airbags
  • Cruise Control
  • Power Steering with Tilt Wheel
  • Mirrors with Pivoting Arms
  • Power Door Locks with Remote
  • Power Windows
  • 12V Powerpoints
  • Sunvisors
  • Folding Privacy Screens for Cab Door Windows
  • Appliqué Package
  • Keyless Entry with Remote
  • Entry Door Assist Handle


  • LED Ceiling Lights with Dimmer Switch
  • Soft Vinyl Ceiling
  • Tinted Dual-Pane Euro Acrylic Windows
  • Deluxe Powered Ventilator Fan with Rain Cover
  • Powered Roof Vent in Bathroom

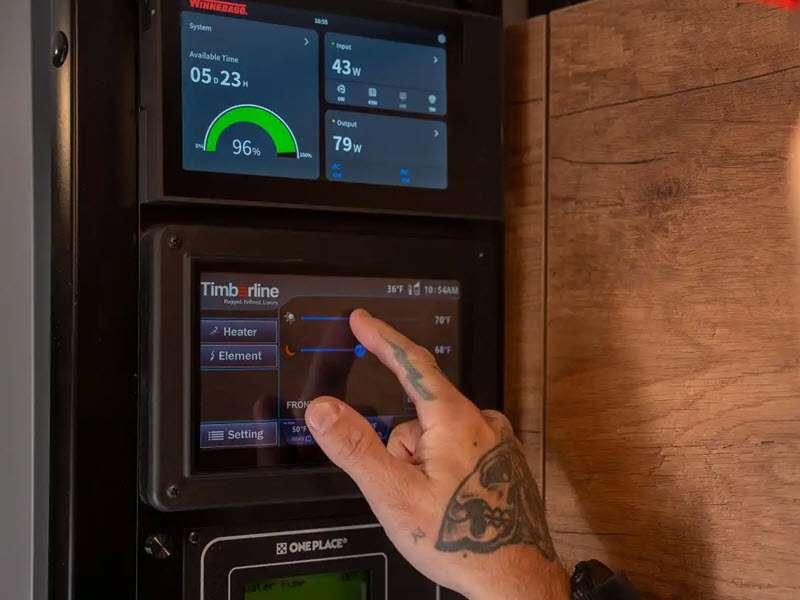

  • Systems Monitor Panel
  • USB Charger
  • Ram® Tough-Track™ Mounts


  • Flip-Up Countertop Extension
  • Laminate Countertop

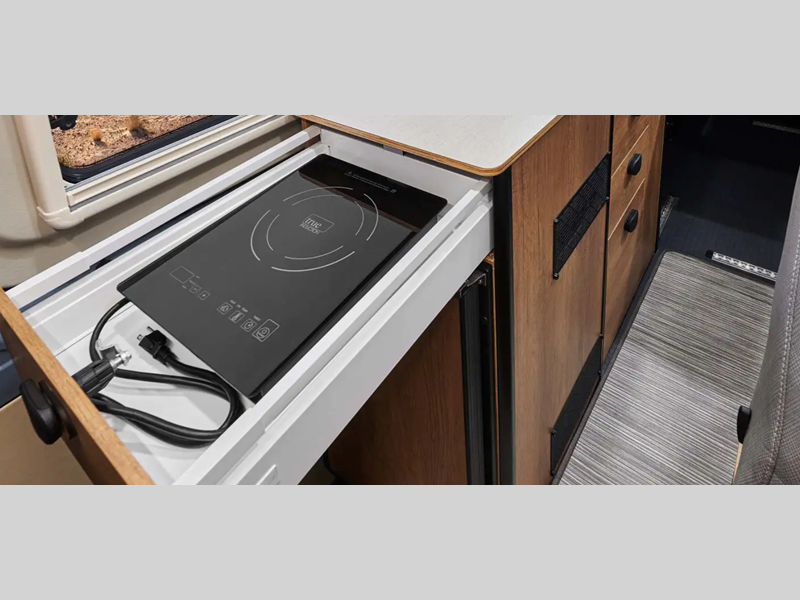

  • Single-Burner Induction Range Top with Glass Cover
  • 2.5 Cubic Foot Compressor-Driven Refrigerator/Freezer
  • Stainless Steel Sink with Folding Faucet and Glass Cover
  • Pantry
  • Fold-Down Exterior Table

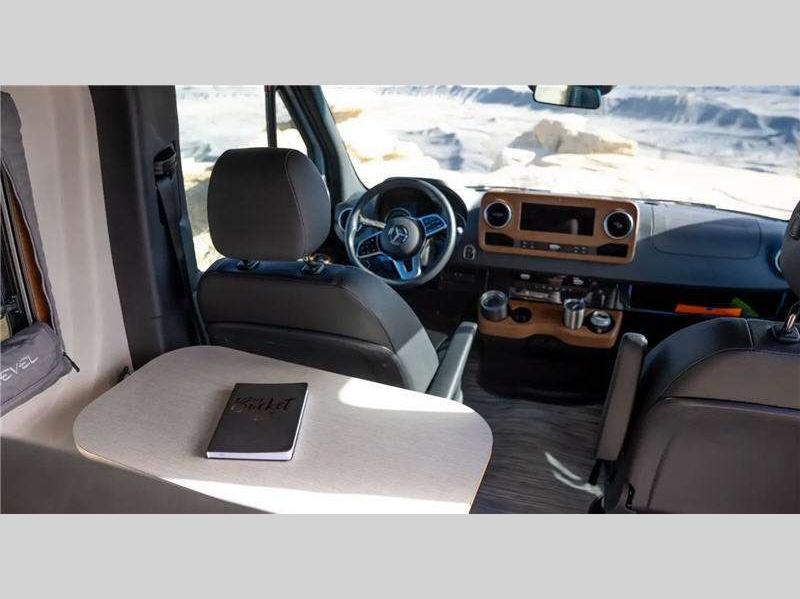

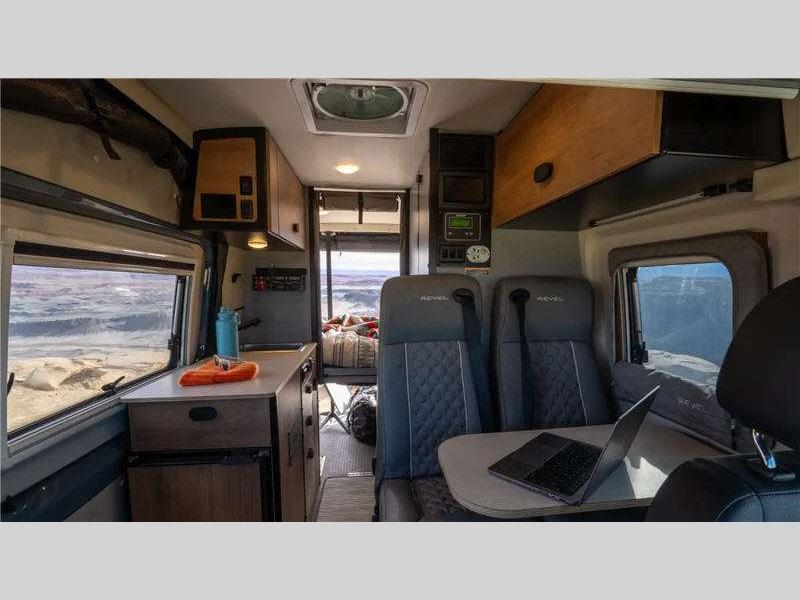

  • Pull-Up Dinette Table


  • Flexible Showerhead
  • Shower Curtain
  • 31" X 26" Wet Bath

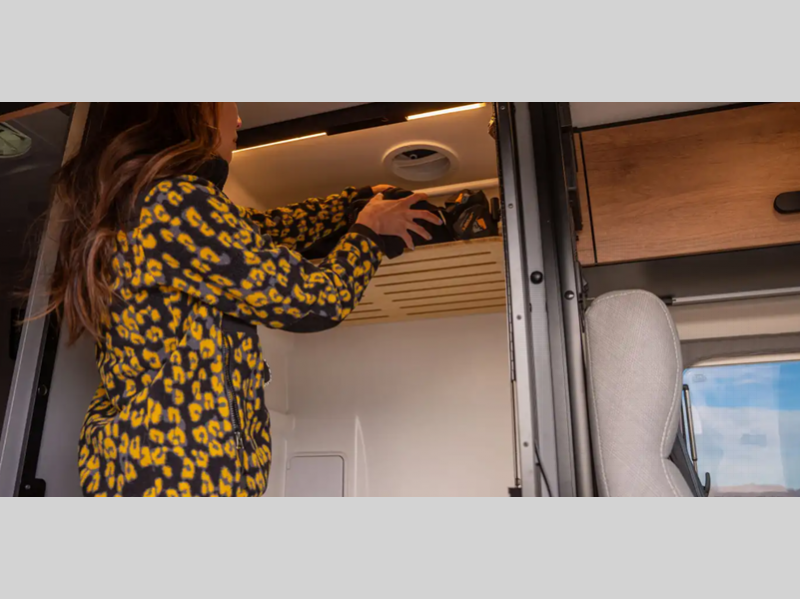

  • Three Removable Shelves Convert to Wet Storage Cabinet
  • Removable Clothes Hanger
  • Shower Mat Made from Bamboo

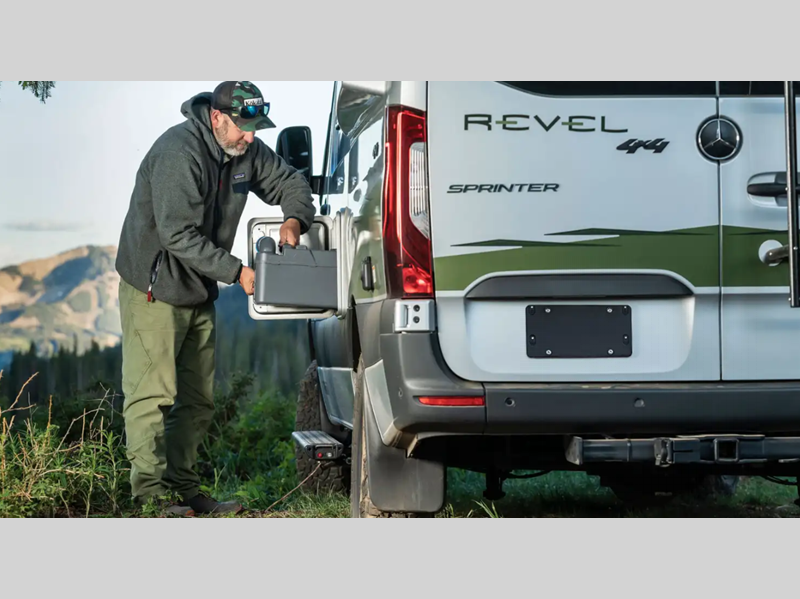

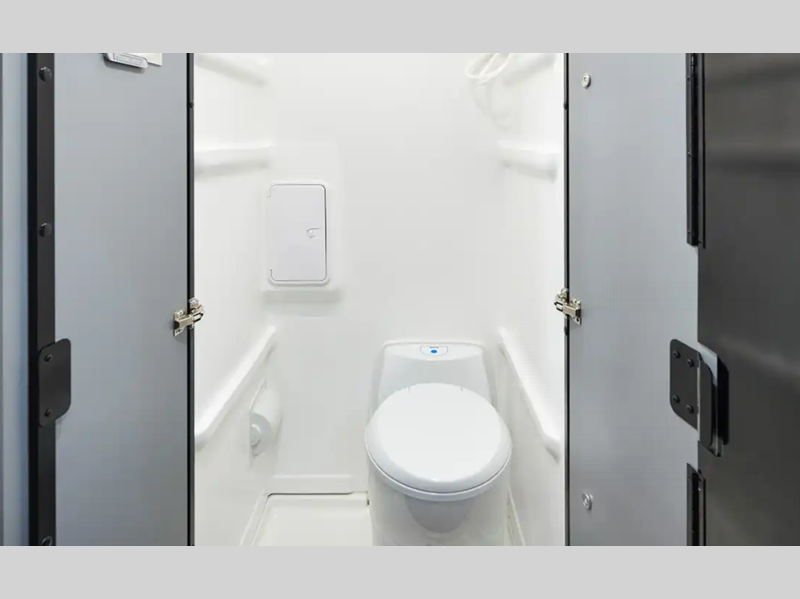

  • Swiveling Cassette Toilet

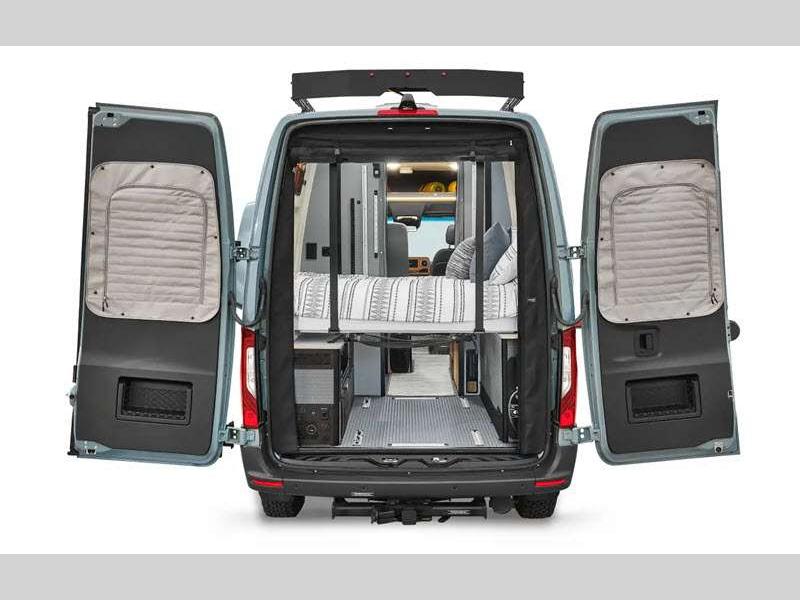

  • Power Lift Bed
  • Flex Bed System

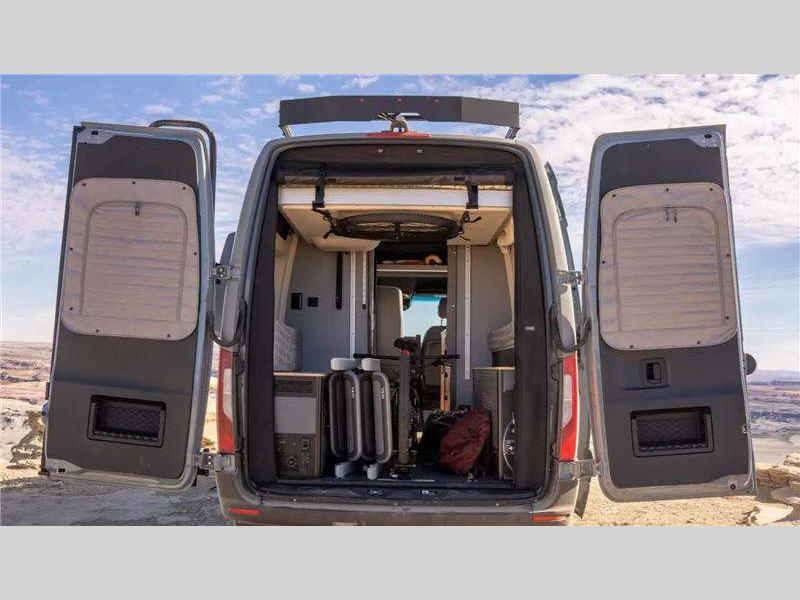

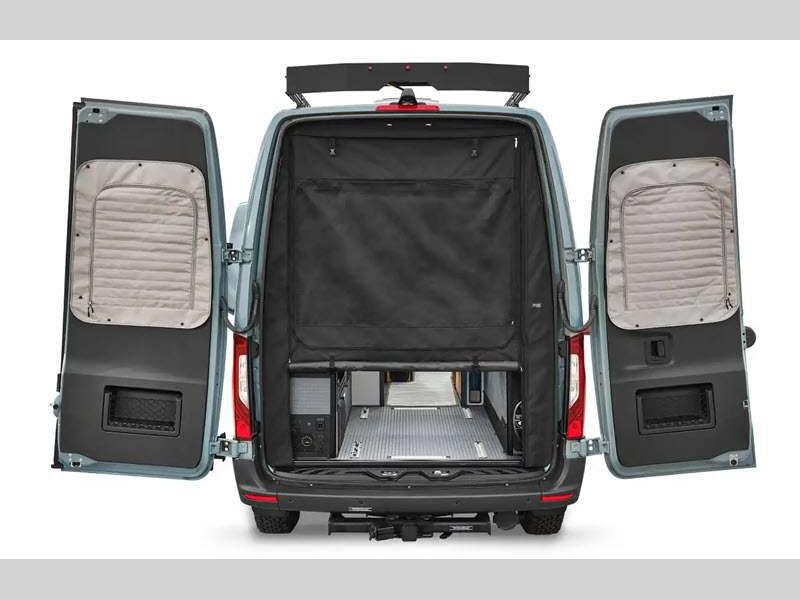

  • 140 Cubic Foot Under-the-Bed Storage with Six Removable Cargo Tie-Down Anchors


  • Side Screen Door

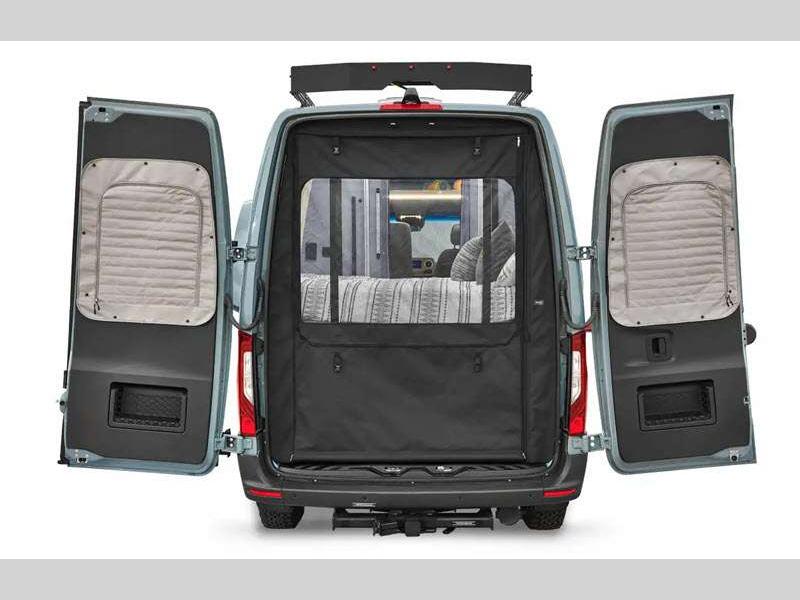

  • Rear Screen Door
  • Powered Patio Awning
  • Porch Light with Interior Switch
  • Running Boards with Ground Effect Lighting and Rocker Trim with Mud Guard
  • Rear Mud Guards
  • Movable Ladder
  • Luggage Rack

Heating and Cooling System

  • Hydronic Heating System

Electrical System

  • AC/DC Load Center/Converter
  • Auxiliary Start Circuit
  • Three Deep Cycle Group 31 Batteries (AGM Maintenance Free)
  • Coach Battery Disconnect System
  • Dual-Battery Charge System
  • 30 AMP Power Cord
  • Exterior AC Receptacles
  • Exterior DC Receptacles
  • Solar Panel Battery Chargers
  • 2,000 Watt AC/DC Inverter

Plumbing System

  • Exterior Service Center with City Water Hookup/Tank Diverter Valve, Drainage Valves, Sewer Hose Valve, and Exterior Wash Station with Pump Switch
  • TrueLevel™ Holding Tank Monitoring System
  • Winterization Package with Valve and Siphon Tube
  • On-Demand Water Pump
  • Galley Drain Pump
  • Insulated/Heated Gray Water Holding Tank
  • Insulated/Heated Fresh Water Tank


  • Smoke and Carbon Monoxide Detectors
  • 10 BC Fire Extinguisher
  • Ground Fault Interrupter
  • High-Mount Brake Lamps


  • 12-Month/15,000-Mile Basic Limited Warranty

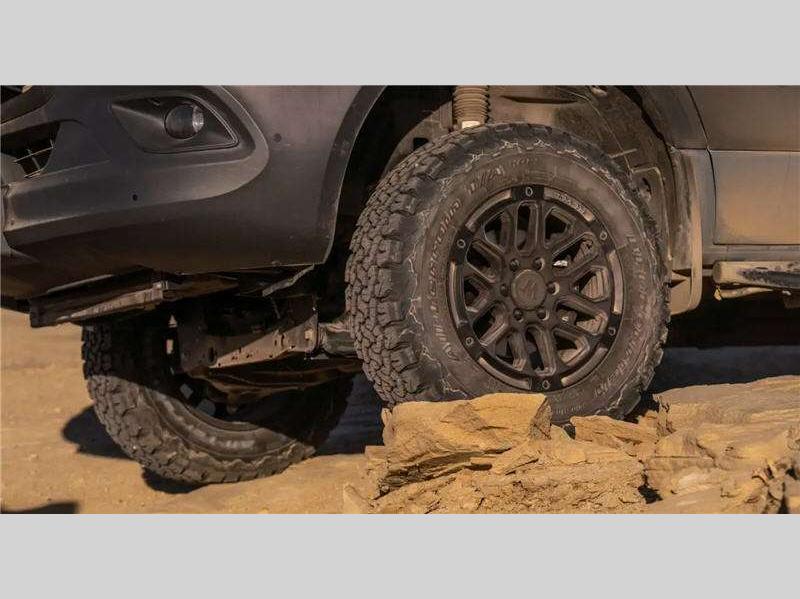

  • Performance Wheels and BF Goodrich T/A KO2 All-Terrain Tires
  • JBL® Premium Sound Speakers
  • Large Screen Infotainment Center with Rand McNally RV GPS, 9" Touch Screen Color Monitor with Split Screen Function, Rand McNally RV GPS Safe and Easy Routing, Tools and Amenities, Trips and Content, Turn-by-Turn Voice Guidance, AM/FM Radio,Handheld Remote, SiriusXM® (Includes 90-Day Trial Subscription), iPod®/iPhone® Audio Integration, Bluetooth®, Color Rearview Camera (Required)
  • 13,500 BTU Low-Profile High-Efficiency Roof Air Conditioner


See us for a complete list of features and available options.


All features and specifications are subject to change.
