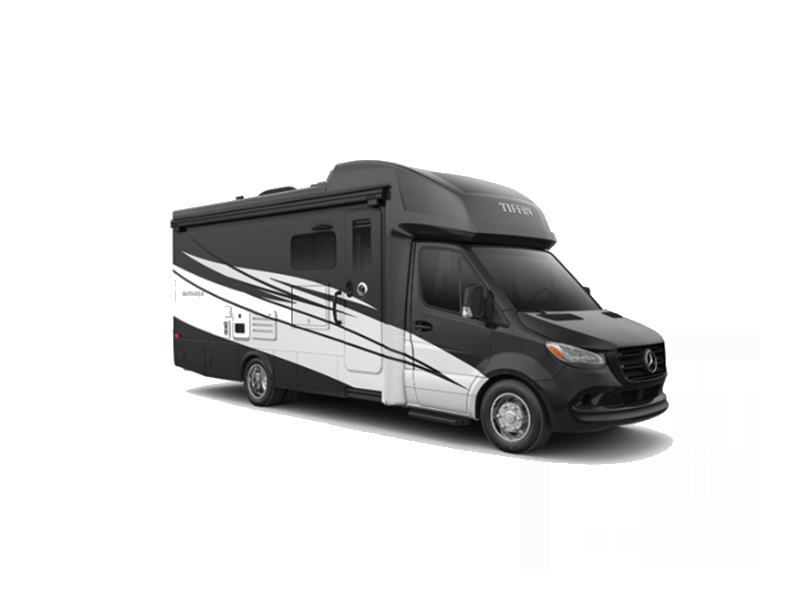

The Tiffin Wayfarer Class C motorhomes provide an efficient 2.0L V4 diesel engine with turbocharged power, 332 lb.-ft. of torque and diesel fuel economy! There is maximum space and optimal organization so you can relax in an elegant atmosphere for life on the road!



Each coach is built on a Mercedes-Benz 3500 XD dual wheel cutaway chassis with load adaptive electronic stability along with attention, traffic, active brake and lane keeping assist for safety. The chassis also has the SumoSprings ride assist system and the Lippert hydraulic leveling system for smooth driving and set up. Some new features you will enjoy are the updated decor packages and new Generation 7 paint schemes, a 9-speed shiftable automatic transmission, an optional Starlink internet system, and new matte black cabinet hardware and bathroom accessories!



Spontaneous adventures and well-planned trips are waiting in a Wayfarer Class C diesel motorhome by Tiffin Motorhomes; choose yours today!

  • Wayfarer 25 JW

    Wayfarer 25 JW Floorplan Image

    Take a Virtual Tour

    Tiffin Wayfarer Class C diesel motorhome 25 JW highlights: Queen-Size Murphy Bed ... more about Wayfarer 25 JW

    Specifications

    Sleeps 3
    Slides 1
    Length 25 ft 8 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Mink, Champagne
    Exterior Color Generation 4, Generation 6 Paint Schemes
    Hitch Weight 5000 lbs
    GVWR 11030 lbs
    Fresh Water Capacity 30 gals
    Grey Water Capacity 33 gals
    Black Water Capacity 28 gals
    Tire Size LT215/85R16
    Furnace BTU 30000 btu
    Generator 3.2 kw Onan Quiet Diesel
    Fuel Type Diesel
    Engine 3.0L 6 Cylinder Turbo Diesel
    Chassis Mercedes-Benz 3500
    Horsepower 188 hp
    Fuel Capacity 24.5 gals
    Wheelbase 170.3 in
    Number Of Bunks 1
    Available Beds Queen Murphy Bed
    Torque 325 ft-lb
    Refrigerator Type Gas/Electric
    Refrigerator Size 6.5 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 30" x 36"
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 12 gals
    Water Heater Type Truma AquaGo Comfort Plus Instant
    AC BTU 15000 btu
    Basement Storage 54 cu. ft.
    TV Info LR Lift-Up TV
    Awning Info Girard Wind Sensor with Speakers
    Washer/Dryer Available Yes
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Wayfarer 25 LW

    Wayfarer 25 LW Floorplan Image

    Take a Virtual Tour

    Tiffin Motorhomes Wayfarer Class C diesel motorhome 25 LW highlights: Two Twin ... more about Wayfarer 25 LW

    Specifications

    Sleeps 5
    Slides 1
    Length 25 ft 8 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Sedona, Grandview
    Exterior Color Gen 6, Gen 7 Paint Schemes; Silver Sand, Coastal Blue, Sea Mist
    Hitch Weight 2000 lbs
    GVWR 11030 lbs
    Fresh Water Capacity 32 gals
    Grey Water Capacity 32 gals
    Black Water Capacity 28 gals
    Tire Size LT215/85R16
    Furnace BTU 30000 btu
    Generator 4,000 kW RVMP Flex Power LP
    Fuel Type Diesel
    Engine 2.0L V4 Turbo Diesel
    Chassis Mercedes-Benz 3500XD
    Horsepower 211 hp
    Fuel Capacity 24.5 gals
    Wheelbase 170.3 in
    Number Of Bunks 1
    Available Beds Two Twin
    Torque 332 ft-lb
    Refrigerator Type Gas/Electric
    Refrigerator Size 5 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 24" x 32"
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 12 gals
    Water Heater Type Truma AquaGo Comfort Plus Instant
    AC BTU 15000 btu
    Basement Storage 130 cu. ft.
    Awning Info Girard Side-Mounted Power w/LED Lighting and Speakers
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Wayfarer 25 RW

    Wayfarer 25 RW Floorplan Image

    Take a Virtual Tour

    Tiffin Motorhomes Wayfarer Class C diesel motorhome 25 RW highlights: Murphy Bed ... more about Wayfarer 25 RW

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 25 ft 8 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Sedona, Grandview
    Exterior Color Gen 6, Gen 7 Paint Schemes; Silver Sand, Coastal Blue, Sea Mist
    Hitch Weight 5000 lbs
    GVWR 11030 lbs
    Fresh Water Capacity 30 gals
    Grey Water Capacity 33 gals
    Black Water Capacity 28 gals
    Tire Size LT215/85R16
    Furnace BTU 30000 btu
    Generator 4,000 kW RVMP Flex Power LP
    Fuel Type Diesel
    Engine 2.0L V4 Turbo Diesel
    Chassis Mercedes-Benz 3500XD
    Horsepower 211 hp
    Fuel Capacity 24.5 gals
    Wheelbase 170.3 in
    Number Of Bunks 1
    Available Beds Queen Murphy
    Torque 332 ft-lb
    Refrigerator Type Gas/Electric
    Refrigerator Size 7 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 30" x 36"
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 12 gals
    Water Heater Type Truma AquaGo Comfort Plus Instant
    AC BTU 15000 btu
    Basement Storage 54 cu. ft.
    TV Info BR 32" TV
    Awning Info Girard Side-Mounted Power w/Integrated LED Lighting
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

Wayfarer Features:

Standard Features (2025)



Chassis and Drivetrain

  • Mercedes-Benz® 3500XD Dual Wheel Cutaway Chassis
  • Mercedes-Benz 2.0 Liter V4 Turbo Diesel High Output 211 HP diesel engine with 332 lb. ft. Torque
  • Two-Wheel Drive
  • 220-Amp Alternator
  • Mercedes-Benz® 9G-Tronic Automatic Transmission
  • Aluminum Wheels
  • Front and Rear LT 215/85 R16 Tires
  • (1) 12-Volt Flooded LeadAcid Chassis Batteries
  • Lippert Hydraulic Leveling System with Control Panel
  • SumoSprings® Ride Assist System
  • Front Radiator
  • Four Wheel ABS Brakes
  • Manual Parking Brake
  • Active Brake Assist (Collision Mitigation)
  • Active Distance Assist Distronic® (Adaptive Cruise Control)
  • Attention Assist
  • Traffic Sign Assist
  • Load Adaptive Electronic Stability Program (ESP)
  • High Beam Assist
  • Active Lane Keeping Assist

Construction

  • Seamless One-Piece Gel-Coated Fiberglass Molded Roof Cap
  • One-Piece Molded Gel-Coat Fiberglass Front and Rear Caps

Electrical

  • Spyder Controls Multiplex System
  • Firefly Integrations Mira Module
  • Interior Entryway Spyder System Main Monitor
  • Additional Spyder System Switch Panel
  • (1) 15,000-BTU Air Conditioner
  • Wall-mounted Thermostat with Built-in Temperature Sensor
  • SmartPlug® Detachable 30-Amp Shore Power Cord
  • Prep for 2 Solar Panel
  • HD Over-the-air Antenna
  • Park Cable and Ground Satellite Hook-up
  • Prep for In-motion Satellite
  • HDMI Ports
  • Mercedes-Benz® Wireless Internet Access
  • 12-Volt Breaker Panel
  • 12-Volt Disconnect Switch
  • Inverted Outlets for CPAP Machine in Bedroom
  • Ground Fault Circuit Interrupter (GFCI) Outlets at Galley, Lavatories, and Sewer Bay
  • 110-Volt Exterior Receptacle
  • Surge Guard® Transfer Switch
  • USB (Standard & USB-C) Receptacles Throughout Coach

Heating and Cooktop Power Source

  • Liquid Propane (LP) Coach
  • Hydronic Heating & Electronic Appliance Equipped Coach (Optional)

Generators and Power Systems

  • 4000 Series RVMP Flex Power (Dual Fuel)
  • 2,000-Watt Pure Sine Wave Inverter

House Batteries

  • (2) 12-Volt Flooded Lead-Acid House Batteries
  • (2) 12-Volt Lithium House Battery (Optional)

Space Heating

  • (1) 30,000-BTU Ducted Furnace (DEP)
  • Hydronic Heating System (DEP)

Electrical Add On Options

  • (1) 200-Watt Solar Panel with (1) 30-Amp Controller
  • Starlink Pro
  • Wi-Fi Booster

Plumbing

  • Water Heater Bypass System
  • Aqua View Showermiser™
  • Water Filter
  • Water Pump
  • Low-point Water Drain Lines
  • Black Holding Tank Flush System
  • Gravity Water Fill
  • Heated Water and Holding Tank Compartment
  • Tank Level Monitor System
  • Centralized Exterior Sewer Bay with Gravity Black and Grey Evacuation Ports
  • Exterior Rinse Hose with Shower Head
  • Fresh Water Hookup for City Water and Tank Fill
  • Sewer Hose Storage

Water Heater Options

  • Truma AquaGo Comfort Plus Instant Water Heater (DEP)
  • Hydronic Heating System (DEP)

Exterior

  • Full-body Paint with (2) Layers of Clear Coat
  • High Performance Protective Film on Front Cap, Front Cab, and Other Select Areas
  • (1) Girard® Side-mounted Powered Patio Awning with Integrated LED Lighting and Built-in Speakers
  • Lockable Handles on Compartment Doors
  • Motion-sensor Lights in Cargo Bay
  • Flush-Style Tinted Windows with Tip-out Feature
  • Exterior Patio Light
  • Fog Lights
  • Driver and Passenger Side Front Cap Exterior Entry Light
  • Heated, Electrically Adjustable Side-view Mirrors
  • Lightweight Entry Door
  • Entry Door Grab Handle
  • Mud Flaps

Exterior Add On Options

  • Exterior TV

Paint Scheme Options

  • Generation 6 Exterior Paint Scheme (Optional)
  • Generation 7 Exterior Paint Scheme (Optional)

Paint Color Options

  • Sea Mist
  • Silver Sand
  • Coastal Blue

Interior

  • Handcrafted Overhead Cabinetry
  • Mild Steel Step Well with Composite Steps
  • Solid Surface Galley Countertop
  • Handcrafted Slide-out Fascia
  • Soft Touch Vinyl Ceiling
  • Dimmable LED Lighting
  • Accent Lighting in Lounge, Galley, and Bedroom
  • Carbon Monoxide Detector
  • LPG Leak Detector
  • Smoke Detector
  • Fire Extinguisher
  • Solar and Privacy Shades
  • Soft-closing Drawers
  • Powered Roof Vents
  • Interior Grab Handle at Entry Door
  • Stereo System with Separate Speaker Zones
  • (2) Captain’s Chair Lounge Cushions

Interior Decor Packages

  • Sedona (Optional)
  • Grandview (Optional)

Upholstery Fabrics

  • Richloom Seaport Bamboo Vinyl Upholstery (DEP)
  • Richloom Etna Linen Vinyl Upholstery (DEP)

Cabinet Color

  • White Linen (Optional)
  • Sandstone (Optional)
  • Shadow (Optional)

Floor Tiles

  • Stony Ground Linoleum

Television

  • Living Area Mounted TV (DEP)
  • Overhead Bunk TV (DEP)

Interior Add On Options

  • Central Vacuum System

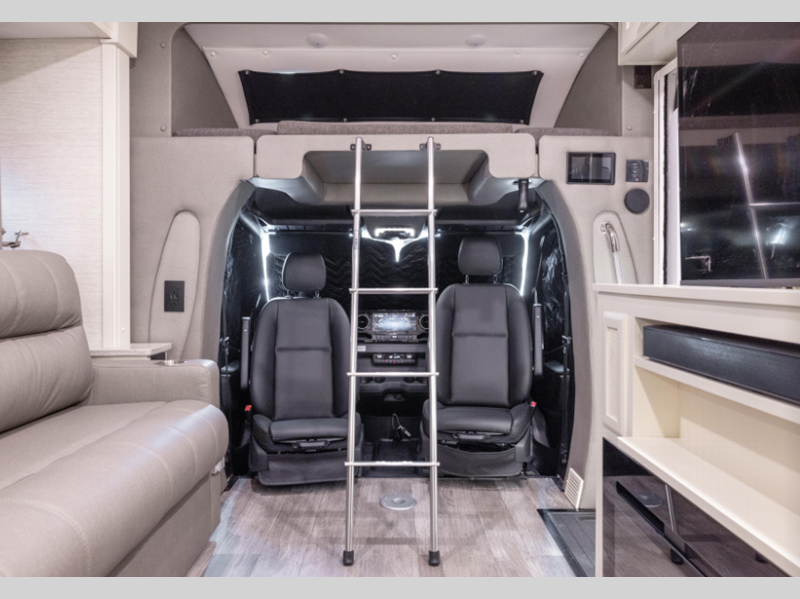

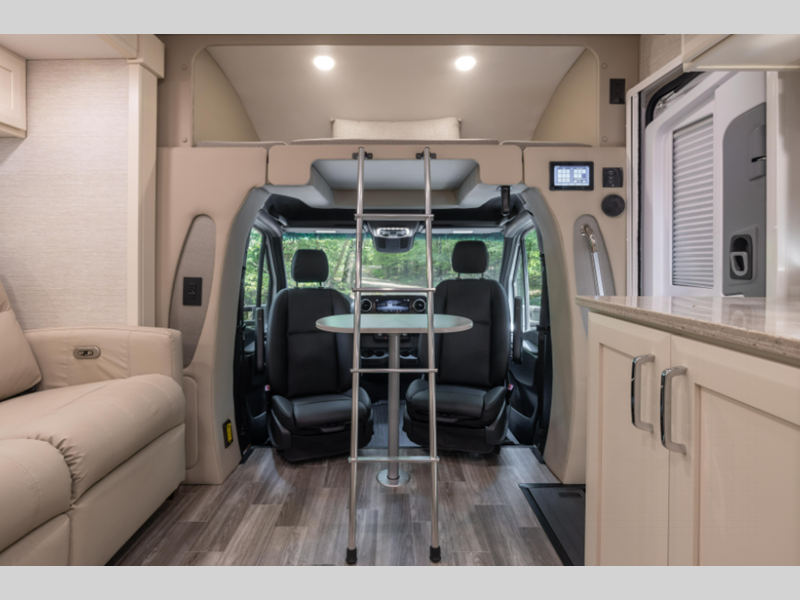

Driver's Compartment

  • Black Leather Adjustable Driver and Passenger Seats
  • Swivel Bases for Driver and Passenger Seats
  • Heated Driver and Passenger Seats
  • Leather Wrapped Steering Wheel with Integrated Controls
  • Keyless Start
  • Windshield with Filter Band
  • Rain Sensor for Windshield Wipers
  • Automatic LED Headlights
  • Emergency Call System
  • Smartphone Integration For Apple Carplay® and Android™ Auto
  • Mercedes-Benz® MBUX Multimedia System with 10.25” Touchscreen
  • Ceiling Mounted Speakers
  • Tray for Smartphones with Charging Ports
  • Intelligent Navigation
  • Auxiliary Start Switch
  • Powered Windows
  • Door-mounted Driver and Passenger Assist Handles
  • Powered Door Locks
  • Vinyl Floor Covering
  • Driver, Passenger, and Windshield Thermal Barrier Shades
  • Instrument Cluster with Color Display

Driver's Compartment Add On Options

  • Side-View Cameras
  • Cab Skylight

Overhead Features

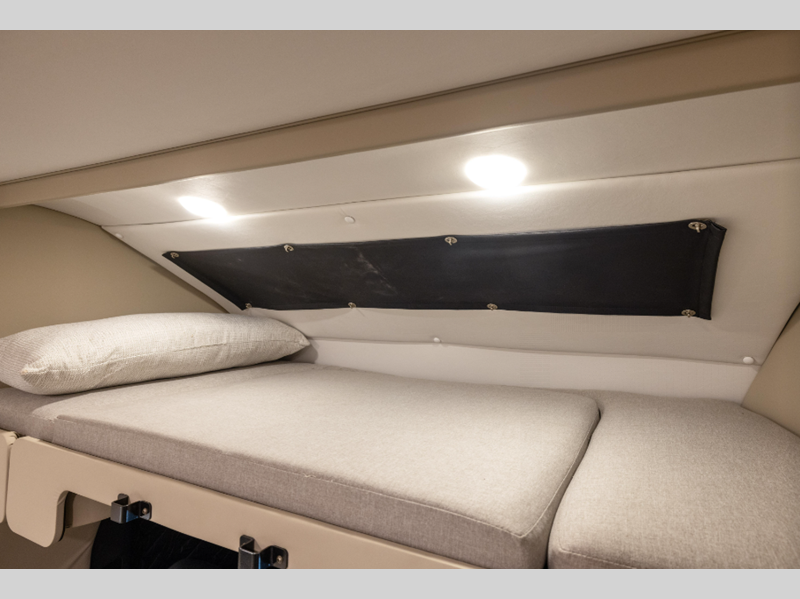

  • Front Overhead Bunk
  • Overhead Entertainment Center (Optional)

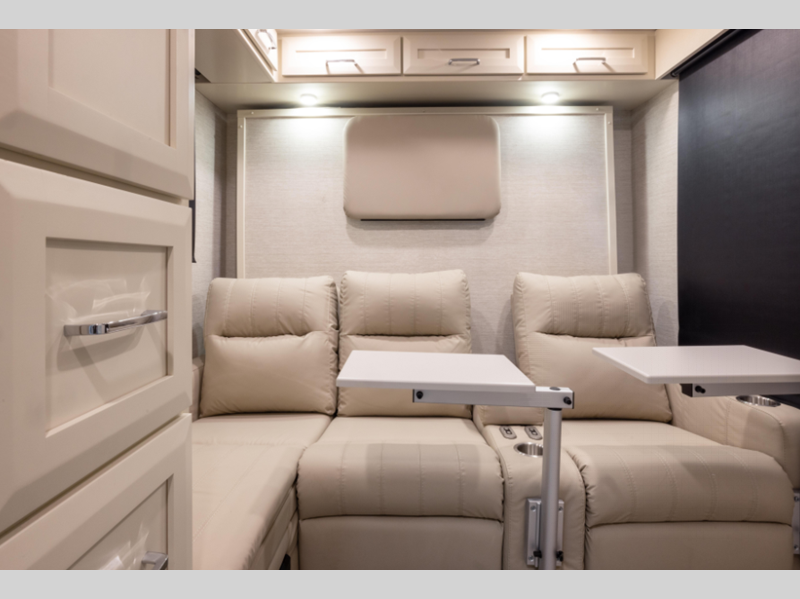

Dinette and Living Area

  • 52" Tri-fold Sofa Bed (25 LW Only)
  • 50" Theater Seating (Optional) (25 LW Only)
  • 72" Booth Dinette-Sleeper (25 RW Only)
  • 68" Theater Seating (Optional) (25 RW Only)
  • 70" Tri-fold Sofa Bed (Optional) (25 RW Only)
  • Driver Side Queen-sized Murphy Bed (60" x 74") with Sofa (25 RW Only)

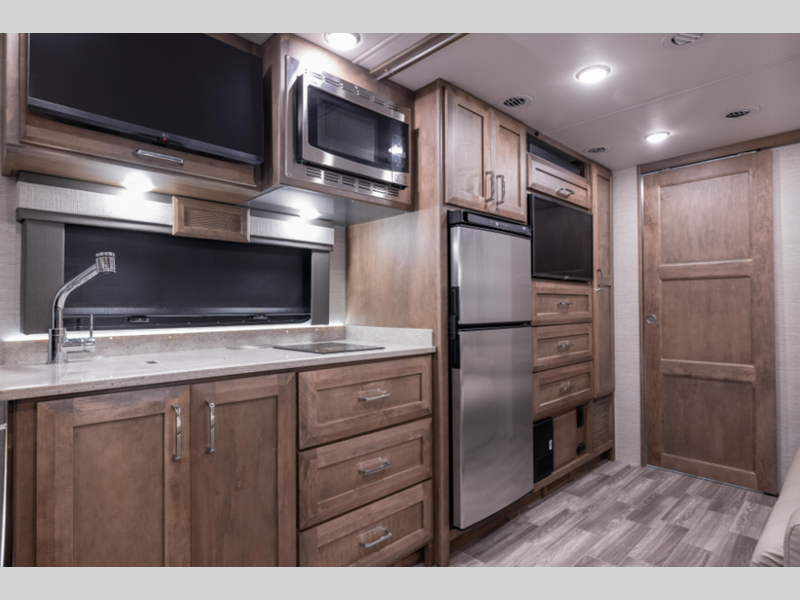

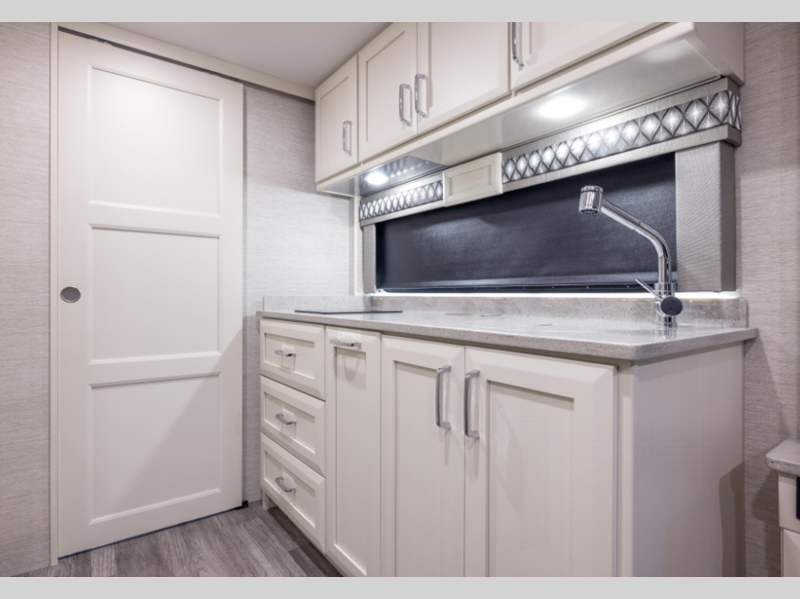

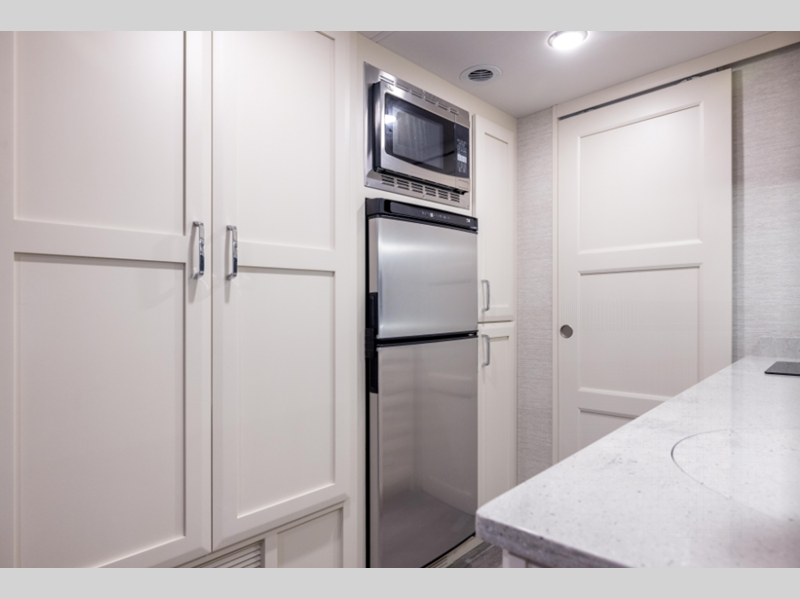

Kitchen

  • Stainless Steel Convection Microwave
  • Stainless Steel Single Bowl Sink and Faucet with Built-in Sprayer
  • Galley Overhead Cabinets
  • Sliding Countertop Extension within Drawer
  • Task Lighting
  • Solid Surface Galley Countertop

Refrigerator Options

  • 12-Volt, 8-Cubic Foot Refrigerator (DEP; 25 RW Only)
  • Gas-Electric, 7-Cubic Foot Refrigerator (DEP; 25 RW Only)
  • 12-Volt, 5.3-Cubic Foot Refrigerator (DEP; 25 LW Only)
  • Gas-Electric, 5-Cubic Foot Refrigerator  (DEP; 25 LW Only)

Cooking Appliances

  • One-Burner Induction Cooktop (DEP)
  • Liquid Propane Cooktop with Built-in Cover (DEP)

Bedroom

  • LED Reading Lights
  • Overhead Cabinets
  • Wardrobe

Mattress

  • Queen-sized Murphy Bed (60" x 74") (25 RW Only)
  • (2) Twin Mattresses (32" x 76"), Combines into King Bed (86" x 76") (25 LW Only)

Bedroom Storage

  • Pop-up Closet Storage (25 LW Only)
  • Closet Pull-out (25 LW Only)

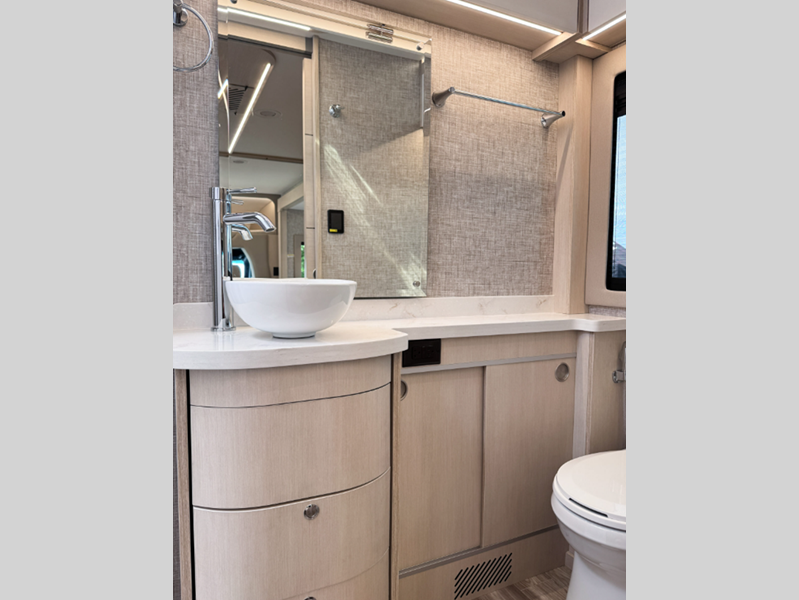

Bathroom

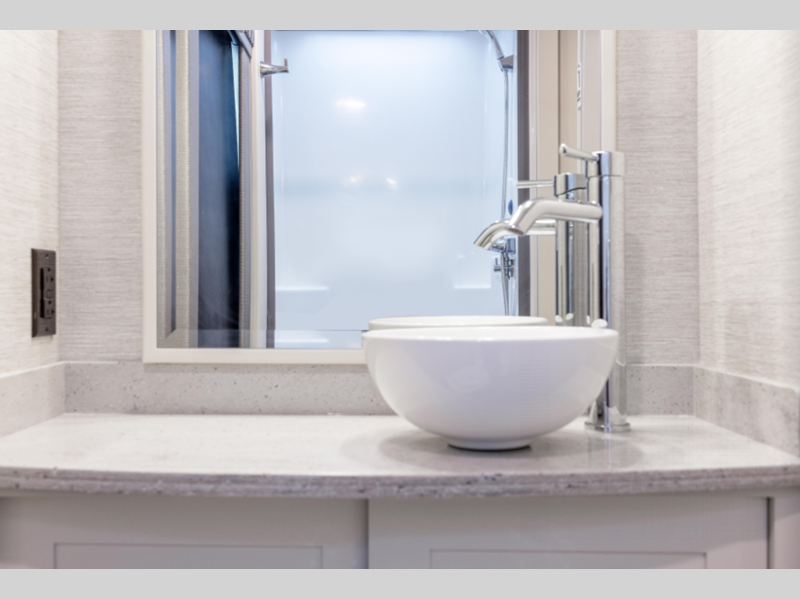

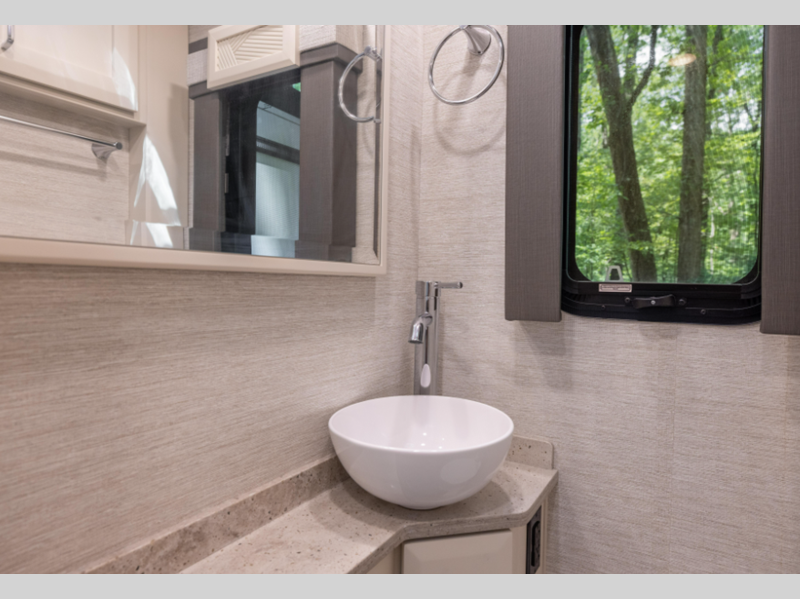

  • Porcelain Vessel Sink with Black Matte Faucet
  • Handheld Shower Head
  • Shower Skylight
  • Towel and Toilet Paper Holders
  • Roof Vent Fan
  • Oversized Mirror
  • Base Cabinet

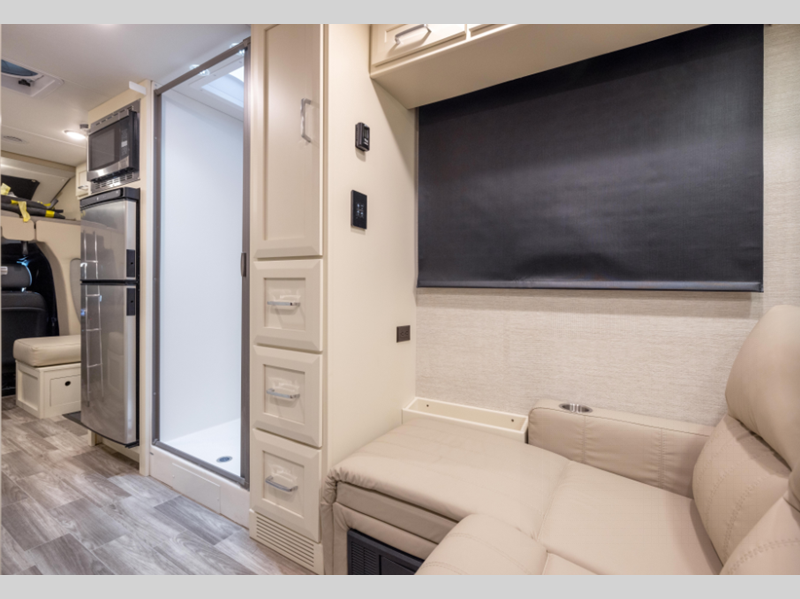

Shower

  • One-Piece Molded Fiberglass Shower (30" x 36") (25 RW Only)
  • One-Piece Molded Fiberglass Shower (24" x 32") (25 LW Only)

See us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Tiffin Motorhomes Logo

Tiffin Motorhomes is proud to be one of the few family-owned manufacturers in the industry, and it makes a significant difference in how our company operates versus our competitors. For starters, with the Tiffin name on every coach, building a superior motorhome isn’t just our occupation. It’s a matter of personal pride, a pursuit we have committed our lives to perfecting.
